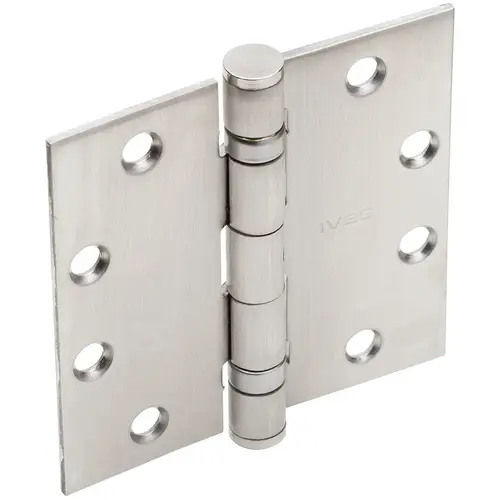

IVES 5BB1 4.5X4.5 630 NRP 5BB1 Standard Weight Full Mortise Hinge-NRP, Satin Stainless Steel
Item #: 5BB1 4.5X4.5 630 NRP by IVES
UPC #: 044074653083
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Height
4-1/2 In.
Pin Type
Non-Removable
Width
4-1/2 In.
Weight
Standard Weight
Color
Satin Stainless Steel
Color Code
630/US32D
Mounting Style
Square
Hinge Type
BB-Ball Bearing
Bearing Type
Ball
Knuckles
5
Package Qty
1
Tip Style
Standard
Base Material
Stainless Steel
Finish
Satin Stainless Steel
Finish Description
Satin Stainless Steel
Product Type
Hinge/Pivot
Hinge Size
4-1/2 x 4-1/2 Inch
Function
Standard Weight Full Mortise
Mount
Full Mortise
Number of Knuckles
5
Finish Family
Stainless Steel
Included Components
Fasteners/Screws
Product Material
Stainless steel
Recommended For
Medium Weight Doors; Medium-Frequency Usage
Number of Mounting Holes
8 Foot (96 Inches)
Standards
ANSI/BHMA A156.1; ANSI/BHMA 156.7; UL Listed
Fastener Size
12-24 x 1/2 UFPHMS; 12 x 1-1/4 FPHWS
Hinge Corner
Square Corner
Features
Standard Weight; Two Ball Bearing Assemblies; Non-Removable Pin
Manufacturer Parent
Allegion
Sub-Series
HP_Commercial_Hinges_ives_10
Alternate Part Number-1
178767
5 Knuckle, ball bearing full mortise hinge
- Recommended for medium weight doors (<150 lbs)
- Recommended for medium frequency usage
- (<400 cycles per day)
- Made with two ball bearing assemblies
- Recommended for use with a door closer
- Packed with fasteners for hollow metal and wood doors
- 12-24 x 1/2 UFPHMS, 12 x 1 1/4 FPHWS
- 10-24 x 1/2 UFPHMS, 10 x 1 FPHWS (3.5x3.5 hinge size only)
- Certified to ANSI/BHMA A156.1 for performance standards
- Meets ANSI/BHMA 156.7 for template hinge dimensions
- UL Classified for windstorm rated assemblies - R37965
- UL Listed, 3 hour fire doors
- Made from brass, 1040 steel, or 304 series stainless steel
- Non-removable pin
- Hospital tip
- Security stud - comes standard with NRP
- Rounded corners
- Security fasteners - pin-in-socket
- Four wire
- Four wire with monitor
- Eight wire
- Eight wire with monitor
- Monitor
- (not available on 3.5X3.5)
- Height x Width - 3.5 x 3.5
- Size (mm) - 89 x 89
- Gauge - 0.123
- Height x Width - 4 x 4
- Size (mm) - 102 x 102
- Gauge - 0.130
- Height x Width - 4.5 x 4
- Size (mm) - 114 x 102
- Gauge - 0.134
- Height x Width - 4.5 x 4.5
- Size (mm) - 114 x 114
- Gauge - 0.134
- Height x Width - 5 x 4.5
- Size (mm) - 127 x 114
- Gauge - 0.146
- Height x Width - 5 x 5
- Size (mm) - 127 x 127
- Gauge - 0.146
- Refer to General Hinge Information page to determine proper hinge for application
- Description - Primer paint
- Substrate - Steel
- Finish - USP
- Description - Bright brass
- Substrate - Brass
- Finish - US3
- Description - Satin brass
- Substrate - Brass
- Finish - US4
- Description - Satin bronze
- Substrate - Brass
- Finish - US10
- Description - Oil rubbed bronze
- Substrate - Brass
- Finish - US10B
- Description - Oxidized bronze
- Substrate - Brass
- Finish - US10A
- Description - Blackened bronze
- Substrate - Brass
- Finish - US11
- Description - Satin nickel
- Substrate - Brass
- Finish - US15
- Description - Matte black
- Substrate - Brass
- Finish - B-BLK
- Description - Bright chrome
- Substrate - Brass
- Finish -
- Description - Satin chrome
- Substrate - Brass
- Finish - US26D
- Description - Aged bronze
- Substrate - Brass
- Finish - B-643e/716
- Description - Bright stainless
- Substrate - Stainless steel
- Finish - US32
- Description - Satin stainless
- Substrate - Stainless steel
- Finish - US32D
- Description - Matte black
- Substrate - Steel
- Finish - F-BLK
- Description - Bright brass
- Substrate - Steel
- Finish - US3
- Description - Satin brass
- Substrate - Steel
- Finish - US4
- Description - Satin bronze
- Substrate - Steel
- Finish - US10
- Description - Oil rubbed bronze
- Substrate - Steel
- Finish - US10B
- Description - Oxidized bronze
- Substrate - Steel
- Finish - US10A
- Description - Blackened bronze
- Substrate - Steel
- Finish - US11
- Description - Satin nickel
- Substrate - Steel
- Finish - US15
- Description - Bright chrome
- Substrate - Steel
- Finish - US26
- Description - Satin chrome
- Substrate - Steel
- Finish - US26D
- Description - Aged bronze
- Substrate - Steel
- Finish - F-643e/716
