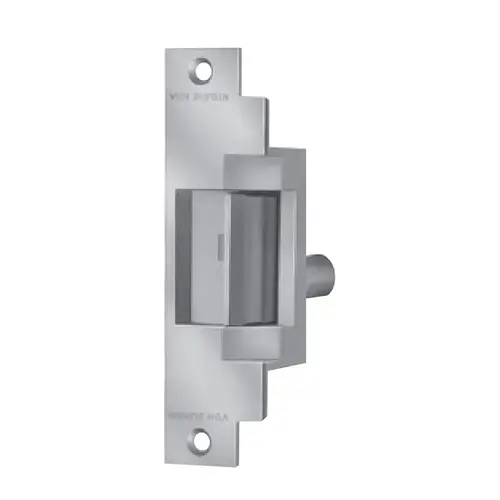

Von Duprin 6212WF 24V US10B FS DS Electric Strike Dark Oxidized Satin Bronze Oil Rubbed
Item #: 6212WF 24V US10B FS DS by Von Duprin
$1,212.57 /each
Buying in bulk
Roll over image to zoom in
Von Duprin 6212WF 24V US10B FS DS Electric Strike Dark Oxidized Satin Bronze Oil Rubbed
Item #: 6212WF 24V US10B FS DS by Von Duprin
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Non handed design provides greater flexibility
- Strike box is adjustable to compensate for misalignment of the door or frame
- Two piece plug connectors are furnished for ease of installation and for removal during strike servicing
- ANSI 156.5 Grade 1, 1500 lb hold-force rated
- UL1034 Burglary-Resistant and UL10C Electric Strike for Fire Door
- Six finishes available to suite with existing hardware
- Durable stainless steel construction
- 24 VDC standard with 12 VDC and AC operation optional
- Meets BHMA A156.31, Grade 1 for endurance and strength
- Static strength 1300 lbs
- Dynamic strength 70 ft-lbs
- Endurance 1,000,000 cycles
Configuration
Centered
Use With
Cylindrical and Mortise Locks
Color
Dark Oxidized Satin Bronze Oil Rubbed
Color Code
613/US10B
Function
Electrically Locked (Fail Safe)
Package Height
2.625"
Package Length
10.5"
Package Volume
161.9296875
Package Width
5.875"
Amp Draw
330mA
ANSI Number
0
Faceplate Shape
Flat Face, Square Corners
Faceplate Size
6-3/8 In. X 1-1/4 In.
Frame Application
Wood
Frame Depth
4-1/2 In.
Keeper Size
3/4 In.
Operating Voltage
24VDC
Package Qty
1
Product Height
1.469"
Product Length
6.375"
Product Width
1.25"
Base Material
Bronze
Switch Type
DS
Electric Strike, for Mortise or Cylindrical Locks, 24VDC, Fail Safe, Dual Monitor Switch, Oil Rubbed Bronze
The Von Duprin 6200 Series is a heavy duty, stainless steel electric strike that is UL1034 listed and meets ANSI/BHMA Grade 1 and designed to withstand abuse. The 6212WF is designed for mortise locks without a deadbolt and cylindrical locks in single door with wood frame applications.
Designed for use with a variety of mortise or cylindrical locksets, as well as mortise exit devices.
The 6200 Series also provides added security and traffic control. 6200 Series electric strikes can be used for retrofit applications or new construction and is designed to withstand abuse.
