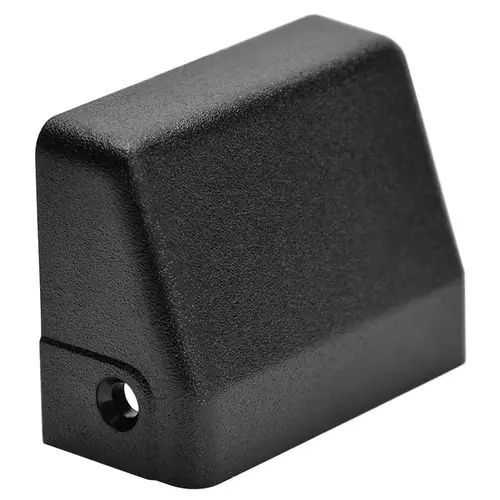

Sargent 68-0561 80 Series Exit Device Plastic End Cap. Black

80 SeriesRim Exit Device

Designed for standard width stile applications on wood and metal doors, the 8800 Series features a rim bolt that combines quiet operation with solid security. Ideal for schools, offices, and hospitals—for both single door and double door applications with mullions.

Features:

• ANSI/BHMA A156.3 - Grade 1

• UL10C (Fire) and UL305 (Panic) Listed

• Device is non-handed

• ANSI/BHMA architectural finishes

• Four standard sizes available

Specifications: Door Type:

• Wood or metal Doors

Door Thickness:

• 1-3/4" (44mm) minimum thickness. For doors over 1-3/4" to 2-1/4" thick, specify thickness and order as 31-

Mounting:

• Supplied standard with wood and machine screws
• Available with through-bolts and mortise nuts

Chassis Cover:

• Cold drawn stainless steel, brass or bronze with ANSI/BHMA Finishes

Chassis:

• Nonferrous alloy (Panic) Ferrous alloy (Fire Rated)

Rails:

• Roll Formed Stainless Steel, Brass or Bronze with ANSI/BHMA Finishes

Hand:

• Non-handed

Dogging Feature (Non 12- only):

• Hex key dogging standard on non fired rated devices; specify 16- for cylinder dogging (#41 cylinder supplied)

Latchbolt:

• Stainless steel, 3/4" (19mm) throw

Strike:

• 649 Strike supplied standard for panic & fire rated openings

Fire Exit Hardware: Door Material:

• Metal

Single Door:

• 3 Hour 4' x 10'

12-HC980, 12-980 or 12-HCL980 Mullion:

• 3 Hour 8' x 8'

With 12-L980:

• 1.5 Hour 8' x 8'

With 12-HD980 Mullion:

• 3 Hour 8' x 10'

Rail Chart:

• Rails are available in 4 sizes, use door width to determine size needed.

• Rails will be factory cut to size if door width is supplied or can be cut in the field

• Stock Size - E
• Door Widths - 24" to 32" (61cm to 81cm)
• Remarks - No cutting required for 32" (81cm) door

• Stock Size - F
• Door Widths - 33" to 36" (84cm to 91cm)
• Remarks - No cutting required for 36" (91cm) door

• Stock Size - J
• Door Widths - 37" to 42" (94cm to 107cm)
• Remarks - No cutting required for 42" (107cm) door

• Stock Size - G
• Door Widths - 43' to 48" (110cm to 122cm)
• Remarks - No cutting required for 48" (122cm) door
