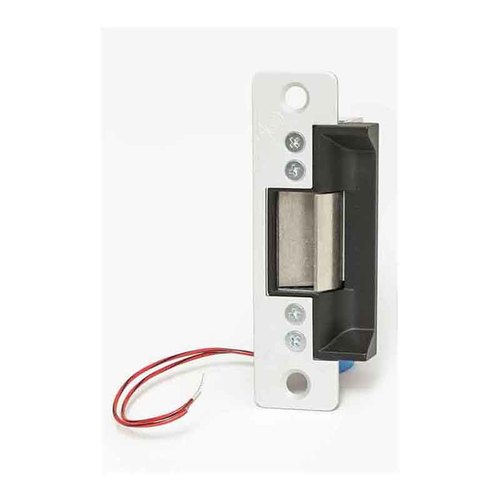

Adams Rite 7100-440-628-00 7100 Electric Strike For Aluminum Jambs

7100 SeriesElectric Strikes for Adams Rite Deadlatches and Cylindrical Locks

Designed for use with Adams Rite deadlatches or cylindrical locksets with 1/2" [12.7 mm] to 5/8" [15.9 mm] latchbolt projection. For use in aluminum, hollow metal, or wood applications. Function - Remote electrical control of any door equipped with an Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical lockset with 1/2" [12.7 mm] to 5/8" [15.9 mm] latchbolt projection. Electrical actuation unlocks the keeper, releasing the latchbolt so the door may be opened without operating the latch itself.

Certifications

• UL 1034 burglary-resistant listed

• UL 294 (6th Edition) listed

Features Case:

• 1" x 3-3/8" x 1-5/8" deep
• [25.4 mm x 85.7 mm x 41.3 mm deep]

Strike Opening:

• 5/8" x 1-7/16" x 1/2" deep
• [15.9 mm x 36.5 mm x 12.7 mm deep]
• Bolt retaining keeper is stainless steel.
• Strike accepts bolt of any Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical latches.

Strike Lip:

• Basic strike has lip of proper length for 1-3/4" [44.5 mm] thick door that closes flush with jamb edge.
• Where door thickness or jamb shape differs from this standard relationship, lip extension kits are available, specified by last dash number.
• Lip extension kits not available on 7101 or 7131.

Latchbolt Projection:

• 1/2" to 5/8"
• [12.7 mm to 15.9 mm]

Faceplate:

• Available in a variety of architectural finishes.

Standard Package:

• Individually boxed with mounting screws, mounting clips, adhesive shims to accommodate jamb or stile extrusion thickness greater or less than nominal 1/8" [3.2 mm].
• 7140 Includes mounting clips and adhesive shims for use where welded tabs are omitted.

Shipping Weight:

• 2 lbs
• [0.91 kg]

Electrical Voltage:

• Available in 12, 16, or 24 Volt AC and DC. DC continuous units are silent, AC intermittent units “buzz” on operation.

Current Draw:

• 0.33A at 12 VDC
• 1.42A at 12 VAC
• 0.22A at 16 VDC
• 0.63A at 16 VAC
• 0.17A at 24 VDC
• 0.74A at 24 VAC

Fail Safe | Fail Secure:

• Field selectable at time of installation. However, AC intermittent solenoid must not be used continuously in either.

Options

• Available with two Form 'C' monitoring switches to indicate when the latchbolt is engaged in the strike and whether the strike jaw is blocked.
• Not available on 7130/7131, 7140.

• Lip extension kits for various dimensions of door centerline to jamb edge; for flat faceplates only.
• Not available on 7101 or 7131.

Modular Packaging:

• Match one strike body kit with one faceplate kit to make a complete electric strike.
• Faceplate kits contain all hardware to mount electric strike.
• Please contact factory or sales representative for details.
