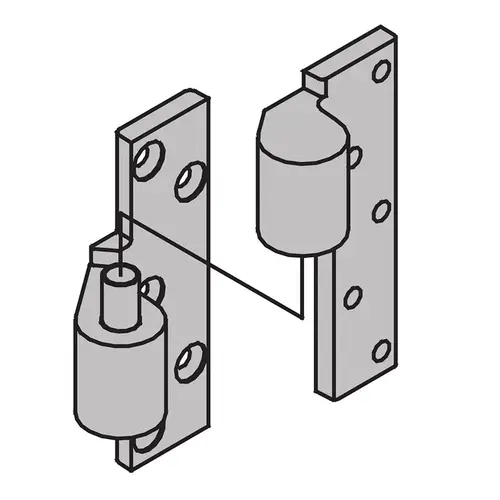

7230F 3/4" Offset Intermediate Pivot, Fire Rated - LH, Satin Stainless Steel

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

IVES 7230F INT LH US32D 7230F 3/4" Offset Intermediate Pivot, Fire Rated - LH, Satin Stainless Steel

Item #: 7230F INT LH US32D by IVES

UPC #: 044074994742

See reviewsSee reviews
In Stock

$472.80

/each
SAVE UP TO 47.28

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Color

Satin Stainless Steel

Color Code

630/US32D

Package Qty

1

Base Material

Stainless Steel

Finish

Satin Stainless Steel

Finish Description

Satin Stainless Steel

Product Type

Hinge/Pivot

Handing

LH

Hand

Left Hand

Function

Intermediate Pivot

Fire Rated

Yes

ADA Compliant

No

Finish Family

Stainless Steel

Product Material

304 Stainless Steel

Standards

ANSI/BHMA A156.4 C07311; UL Listed

Function Family

Hinge/Pivot

Vertical Adjustment

3/16 Inch

Series

7230 Series

Manufacturer Parent

Allegion

Sub-Series

HP_Pivots_ives_20

Product Overview
7230F 3/4" Offset intermediate pivot, fire rated
  • This intermediate pivot is used with 7230F and 7237F offset pivots
  • Use for door weight over the pivot set limit. Use one additional pivot for every additional 100 pounds
  • Recommended for use with 1-3/4" minimum door thickness with 1/8" bevel in 2"
  • Vertical adjustment range 3/16", with positive locking
  • Handed LH or RH

Certifications
  • Certified to ANSI/BHMA A156.4 C07311
  • 7226F - UL Listed, 3 hour fire doors

Material substrate
  • Made from 304 series stainless steel
