30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Aesthetic design. Many escutcheon and lever styles available to match a wide range of styles
- available with push/pull trim, perfect for hospital applications
- Far Exceeds ANSI/BHMA A156.13 Series 1000 Grade 1 and Security Grade 1. Meets various higher security detention standards such as ASTM impact for deadbolt x latchbolt (Level 1) and latchbolt(Level 3) components
- Exceeds cycle testing requirements by 14 times the ANSI/BHMA A156.13 Grade 1 Standard
- Heavy duty wrought steel hubs and high carbon steel spring cartridge provide superior strength and cycle life
- Latchbolt is stainless steel with 3/4" projection one piece anti-friction reversibile latch
- Through-bolted lever trim for increased security
- Torx® and spanner screws
- Security key systems available (Signature, Keso, KesoF1, and XC)
- ANSI/BHMA certified
- Meets A117.1 Accessibility Code
- UL and UL listed to Canadian safety standards
- Meets positive pressure requirements UL 10C and UBC 7-2 (1997)
- California State Reference Code
Thickness
1-3/4"
Strike Number
82-0110
Package Volume
227.6367188
Color
Satin Nickel Plated Clear Coated
Function
05-Office or Entry
ANSI Function
F04 - Entry/Office
Hand
Field Reversible
Grade
Grade 1
Fire Rated
2 Hours {B}
Special Marks
Conventional cylinder, Fire rated 2 Hours {B}
Key(s)
Cut
Strike Width
1-1/4"
Cylinder Type
Conventional Cylinder
Lock Face Size
8" x 1-1/4"
Application
Complete Lock
Package Qty
1
Package Height
4.375"
Screws
Combination
Keying
Keyed Different
Package Width
5.625"
Bolt Protection
3/4" Latch
Color Code
619/US15
Strike Type
ASA
Origin
USA
BAA Qualified
Yes
Rose/Escutcheon Design
LS - Escutcheon
Base Material
Brass or Bronze
Keyway
LA
Strike Height
4-7/8"
Lever/Knob Design
B - Lever
Package Length
9.25"
Finish
15 - Satin Nickel Plated, Clear Coated
Keyed
Yes
Handle Type
Lever
Collection
8200 Series
Cylinder
60 - Large Format Interchangeable Prep, Less Core
Electronic
No
Lock Type
Mortise
Lever
B Lever
Duty Level
Heavy Duty
Escutcheon
LS
Segment
Door Hardware
Product Overview

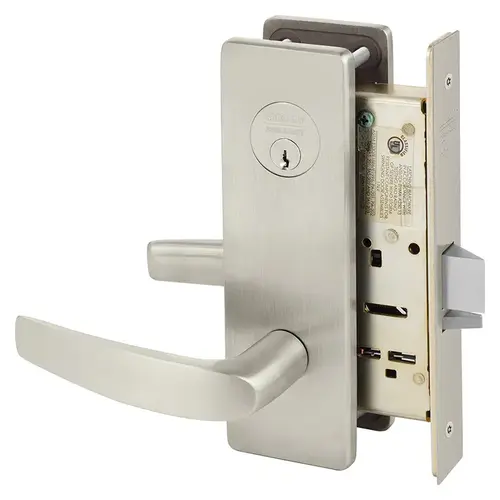

Office or Entry Mortise Lock, LS Escutcheon, B Lever, Satin Nickel,
When it comes to strength and durability, SARGENT continues to set standards with the 8200 Mortise lock. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry. SARGENT Mortise Locks are designed and constructed with high quality components to provide maximum security, performance and durability
The 8200 Series is the strongest lock on the block.
The 8200 series far surpasses Grade 1 standards, making it the strongest and most durable mortise lock in the industry.
Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Sargent Manufacturing Company makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
