30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Grade
ANSI/BHMA Grade 1
Thickness
1-3/4"
Application
Fire Doors and Windstorm Applications
Hand
Field Reversible
Color
Satin Chrome
Color Code
626/US26D
Function
65-Privacy/Bedroom/Bath
Fire Rated
2 Hours {B}
Origin
USA
BAA Qualified
Yes
Package Height
4.375"
Package Length
9.25"
Package Volume
227.6367188
Package Width
5.625"
ANSI Function
F22
Bolt Protection
3/4" Latch
Lever/Knob Design
B - Lever
Lock Face Size
8" x 1-1/4"
Package Qty
1
Rose/Escutcheon Design
LN - Rose
Screws
Combination
Special Marks
Fire rated 2 Hours {B}
Strike Height
4-7/8"
Strike Number
82-0110
Strike Type
Curved Lip
Strike Width
1-1/4"
Base Material
Brass or Bronze
Finish
Satin Chrome
Backset
2-3/4 Inch
Strike
ASA Strike
Design
B Lever and LN Rose
Series
8200 Series
Finish Description
Satin Chrome
Lever Style
B-Lever
Rose/Escutcheon Trim
LN-Rose
Product Type
Mortise Lock
ADA Approved
False
Warranty
10 Year
Handle Type
Lever
Door Thickness
1-3/4 inch
Latch Throw
3/4 Inch
Deadbolt Throw
1 Inch
Deadbolt Size
1-1/4" x 5/8"
Latch Size
1" x 5/8"
Deadbolt Type
One Piece Hardened Stainless Steel
Hub Material
Cold Forged Steel
Standards
ANSI/BHMA A156.13 Series 1000 Operational Grade 1 and Security Grade 1 with All Standard Trims; UL and cUL Listed; ANSI/UL 10C, Positive Pressure Fire Test of Door Assemblies
Case Dimensions
7/64" Thick
Front Size
8" x 1-1/4"
Function Family
Privacy/Bedroom/Bathroom
Strike Lip
1-1/4 Inch
Product Projection
2-5/8 Inch
Rose/Escutcheon Width
2-1/8 Inch
Rose/Escutcheon Length
2-1/8 Inch
Features
Patented Design and Construction; Pre-Assembled Components Make Installation Fool-Proof; Trim Outside Retracts Latchbolt Except When Locked by Thumbturn; Trim Inside Retracts Latchbolt and Unlocks Outside Trim
Latch Type
One Piece Anti-Friction Reversible Latch
ADA Compliant
YES
Finish Family
Satin Chrome
Strike Size
4-7/8" Length x 3/32" Thick
Manufacturer Parent
Assa Abloy
Knob/Lever Size
5 Inch
Lever Style Family
Straight Lever
Sub-Series
CL_Mortise_Locks_sargent_283

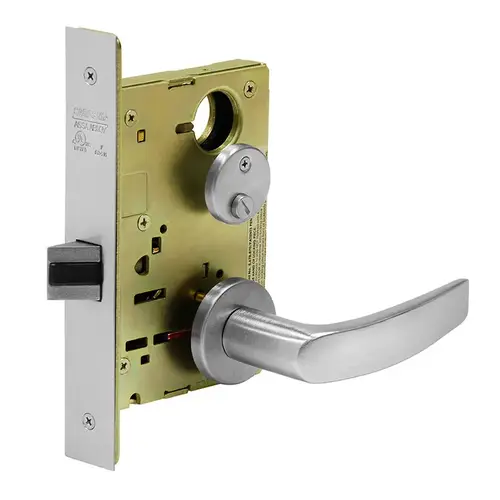

With its innovative, multi-functional lock body, the 8200 Series Mortise Lock, is considered the industry benchmark for all mortise locks on the market today. It is also the strongest and most durable—far surpassing ANSI/BHMA A156.13 Series 1000 Grade 1 standards in independently verified testing—for additional resistance against vandalism and unauthorized entry.The electromechanical version of the 8200 Series Mortise Lock operates from 12 to 24VDC and can be used in stand-alone applications or as part of an integrated access control system. Featuring EcoFlex technology, the electromechanical version dramatically reduces power consumption by up to 96%, as certified by GreenCircle. The patented SARGENT Mortise Locks are designed and constructed with high quality components to provide maximum security, performance and durability. These locks represent over a century of innovation and experience in manufacturing hardware and are the industry’s benchmark for mortise locks: strong, durable, flexible, innovative and secure.
Features:
