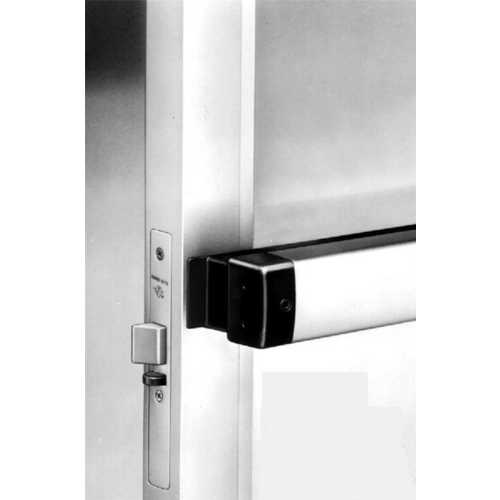

Adams Rite 8410-37136 8400 Narrow Stile Mortise Exit Device, Satin Aluminum Clear

Item #: 8410-37136 by Adams Rite

UPC #: 400654006265

See reviews

In Stock $585.83 /each

SAVE UP TO 58.58

Buying in bulk

Roll over image to zoom in

Adams Rite 8410-37136 8400 Narrow Stile Mortise Exit Device, Satin Aluminum Clear

Item #: 8410-37136 by Adams Rite

UPC #: 400654006265

See reviews See reviews

In Stock $585.83 /each

SAVE UP TO 58.58

Buying in bulk

QUICK SHIPPING*

Usually ships in 1 business day

QTY
+
+ Add to Wishlist

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure your are satified with our products.

  • Materials: Pushbar made of extruded aluminum, clad or anodized in a variety of finishes.
  • Handing: Device is non-handed. Lever Entry Trim is field reversible.
  • Pushbar Length: Standard sizes: dimensioned for 30”, 36”, 42”, and 48” openings. Standard width bars can be field cut to the next smallest opening width.
  • Bar Height: Standard model adjusts from 30” to 44”.
  • Door Height: Standard model fits up to 8 ft door, with bar height at 40”– 44”. For doors up to 10 ft. Tall Door Kit available separately: 8055 Tall Door Kit for 8100 or 3055 Tall Door Kit for 3100.
  • Door Thickness: Suits 1-3/4” standard, up to 2-1/4”.
  • Stile Width: 3100 – Minimum 3-3/4”. Door construction may require additional stile width to meet fire ratings and provide adequate strength. 8100 – Minimum 3-3/4”.
  • Projection: 2-15/16” when fully projected, 1-15/16”when dogged.
  • Dogging: Standard dogging with hex key or optional cylinder dogging for 8100 Series only. Electric dogging also available for 3100 and 8100 Series.
  • Fasteners: Standard self-tapping screws. Optional Sex Bolt Kits 26-0584 (two required per device). Specify finish.
  • Cylinders (available separately): See CYLINDERS for cylinder make, thumbturn and trim ring information.
  • Cylinder x Fixed Pull: (ANSI/BHMA Function 03): Accepts any standard Rim cylinder.
  • 3080 Entry Trim (ANSI/BHMA Functions 08, 09): Accepts any standard diameter Mortise cylinder with MS cam. Accommodates cylinder lengths from 1” to 1-1/4”. (Available separately)
  • Warranty: Five year limited.

Hand

RHR

Color

Satin Aluminum Clear Anodized

Color Code

628/US28

Door Thickness

1-3/4 In.

Device Length

36 Inch (3 Foot)

Fire Rated

No

Device Type

Mortise

Includes Trim

No

Mechanical Function

Universal

Minimum Stile Size

2 In.

Package Qty

1

Physical Appearance

Narrow Stile Pushpad

Finish

Satin Aluminum Clear

Handing

Right Hand Reverse

Function

Exit Only

Stile

Narrow Stile

Finish Description

Satin Aluminum

Product Type

Exit Device

Length

3' Device

UNSPSC

31162800

For Aluminum Doors, 628 Clear Anodized, 1-1/8" Backset, RHR, 36" Door Width
8400 Series(Life-Safety) Narrow Stile Mortise Exit Device

The 8400 Series Narrow Stile Mortise Exit Device is designed for narrow stile aluminum applications that require a life-safety exit device with mortise locking solution. Designed for use in single door applications.

Certifications:
  • UL 305 Panic Hardware
Features: Materials:
  • Push bar made of extruded aluminum, clad or anodized in a variety of finishes.
Handing:
  • Specify handing and bevel if applicable.
Push bar Length:
  • Standard sizes dimensioned for 30" (762.0mm), 36" (914.4 mm), 42" (1,066.8 mm), and 48" (1,219.2 mm) openings. Standard width bars can be field cut to the next smallest opening width.
Backset:
  • 31/32" (24.6 mm), 1-1/8" (28.6 mm), or 1-1/2" (38.1 mm). Fits standard cutout used for the Adams Rite 4900 Heavy Duty Deadlatch on narrow stile aluminum doors.
Door Thickness:
  • Suits 1-3/4" (44.5 mm) standard. Device can be modified for thicker doors using Thick Door Kit available separately, or for thermal doors using Thermal Door Kit available separately.
Stile Width:
  • Minimum 2" (50.8 mm) stile. Fits narrow, medium, and wide stile aluminum doors.
Projection:
  • 2-5/8" (66.7 mm) when fully projected,1-5/8" (41.3 mm) when dogged.
Dogging:
  • Standard dogging with hex key or optional cylinder dogging. Electric dogging option also available.
Fasteners:
  • Standard machine screws.
Cylinders:
  • Accepts any standard 1" (25.4 mm) length, 1-5/32" (29.4 mm) diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder. Accommodates cylinder lengths from 1" (25.4 mm) to1-1/4" (31.8 mm). Available separately.
Cylinder x Fixed Pull Functions:
  • For function 03 (Night latch - key releases latch) select any standard 1" (25.4 mm) length,1-5/32" (29.4 mm) diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder. Function 03 is not applicable to 8475 Mortise Mid-Panel Exit Device.
Entry Trim Functions:
  • For entry trim function 08 (key locks/unlockslever) or function 09 (key releases lever) select any standard 1" (25.4 mm) length, 1-5/32" (29.4 mm) diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder. Accommodates cylinder lengths from 1" (25.4mm) to 1-1/4" (31.8 mm). Available separately.
Bolts and Strikes:
  • Mortise deadlatch with bolt measuring 5/8" x 1" x 5/8"
    (15.9 mm x 25.4 mm x 15.9 mm) throw. Solid brass bolt. A variety of strikes are availablefor different applications:
  • Standard strike of stainless steel included, Extended Lip Strike 8460 available separately, Long Face Strike 8455-01 available separately.
Standard Package:
  • Individually boxed.
Shipping Weight:
  • 11 lbs (4.99 kg)
Options:
  • Electrification Options: (MLR) Motorized Latch Retraction, Electric Latch Retraction(LR), Electric Dogging, Alarm
  • Monitoring, Cylinder Dogging, Matching End Caps
