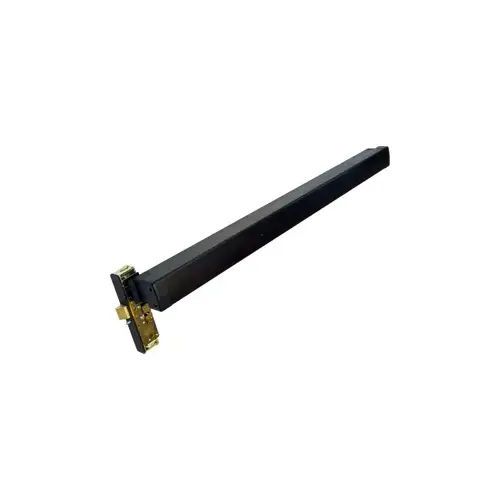

8400 Narrow Stile Mortise Exit Device, Dark Bronze Anodized

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Adams Rite 8420-37236 8400 Narrow Stile Mortise Exit Device, Dark Bronze Anodized

Item #: 8420-37236 by Adams Rite

UPC #: 802063170429

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$672.53

/each
SAVE UP TO 67.25
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 186 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Materials: Pushbar made of extruded aluminum, clad or anodized in a variety of finishes.
  • Narrow Stile Mortise Exit Device
  • Heavy Duty Deadlatching Mechanism
  • Handing: Device is non-handed. Lever Entry Trim is field reversible.
  • Strong, Durable Construction for High Level of Security
  • Pushbar Length: Standard sizes: dimensioned for 30”, 36”, 42”, and 48” openings. Standard width bars can be field cut to the next smallest opening width.
  • Easy To Install
  • Bar Height: Standard model adjusts from 30” to 44”.
  • Door Height: Standard model fits up to 8 ft door, with bar height at 40”– 44”. For doors up to 10 ft. Tall Door Kit available separately: 8055 Tall Door Kit for 8100 or 3055 Tall Door Kit for 3100.
  • Warranted Free From Defects In Workmanship And Materials Under Normal Use And Service
  • Door Thickness: Suits 1-3/4” standard, up to 2-1/4”.
  • Stile Width: 3100 – Minimum 3-3/4”. Door construction may require additional stile width to meet fire ratings and provide adequate strength. 8100 – Minimum 3-3/4”.
  • Projection: 2-15/16” when fully projected, 1-15/16”when dogged.
  • Dogging: Standard dogging with hex key or optional cylinder dogging for 8100 Series only. Electric dogging also available for 3100 and 8100 Series.
  • Fasteners: Standard self-tapping screws. Optional Sex Bolt Kits 26-0584 (two required per device). Specify finish.
  • Cylinders (available separately): See CYLINDERS for cylinder make, thumbturn and trim ring information.
  • Cylinder x Fixed Pull: (ANSI/BHMA Function 03): Accepts any standard Rim cylinder.
  • 3080 Entry Trim (ANSI/BHMA Functions 08, 09): Accepts any standard diameter Mortise cylinder with MS cam. Accommodates cylinder lengths from 1” to 1-1/4”. (Available separately)
  • Warranty: Five year limited.

Hand

Right Hand Reverse

Color

Dark Bronze Anodized Aluminum

Color Code

313

Door Thickness

1-3/4 In.

Device Length

36 Inch (3 Foot)

Fire Rated

No

Device Type

Mortise Device

Includes Trim

No

Mechanical Function

Universal

Minimum Stile Size

2 In.

Package Qty

1

Physical Appearance

Narrow Stile Pushpad

Finish

Dark Bronze Anodized

Backset

1-1/8" Backset

Handing

Right Hand Reverse

Function

Exit Only

Strike

Standard Strike

Series

8400 Push Bar

Stile

Narrow Stile

Finish Description

Dark Bronze Anodized

Product Type

Exit Device

Length

3

UNSPSC

31162800

Warranty

1 Year From Date of Purchase.

Aluminium Bottle Contents

Swinging

ProductType

Manual

Application

Single Door

Dogging Options

Hex Key Dogging

Latch Type

Deadlocking

ADA Compliant

No

Finish Family

Dark Bronze

Included Components

Standard Machine Screws

Standards

ANSI/BHMA A156.3, Grade 1; UL 305

Stile Width

2 Inch

Device Bar Projection

2-5/8" When Fully Projected; 1-5/8" When Dogged.

Device Rating

Panic Exit Hardware

Device Trim Function

No Trim

For Door Thickness

1-3/4"

Function Family

Exit Only Device

For Door Width

36"

Features

Push Bar made of Extruded Aluminum

Door Material

Aluminum

Manufacturer Parent

Assa Abloy

Sub-Series

EDT_Mortise_Devices_adams_rite_5

Grade

Grade 1

Door Width

36"

Door Type

Aluminum

exit device type

Mortise Exit Device, Narrow Stile

Dogging

Hex Key

Alternate Part Number-1

123040

Height

4.5

Width

4.88

MADE IN THE USA

No

Package Quantity

1

Master Key

False

UL Listed

No

Door Handing

Right Hand

Hardware Included

False

Hex Key Dogging

False

AbilityOne

No

Lever/Pull Included

False

Door Handle Style

Touch Bar

Commercial/Residential

Commercial/Residential

For Door Type

Single

Door Lock Function

Mortise

Interior/Exterior

Interior/Exterior

GSA Approved

No

Mount Type

Mortise

TAA/BAA Compliant

Yes

Backset Size

1-1/8 in.

Product Overview
8400 Series(Life-Safety) Narrow Stile Mortise Exit Device

The 8400 Series Narrow Stile Mortise Exit Device is designed for narrow stile aluminum applications that require a life-safety exit device with mortise locking solution. Designed for use in single door applications.

Certifications:
  • UL 305 Panic Hardware
Features: Materials:
  • Push bar made of extruded aluminum, clad or anodized in a variety of finishes.
Handing:
  • Specify handing and bevel if applicable.
Push bar Length:
  • Standard sizes dimensioned for 30" (762.0mm), 36" (914.4 mm), 42" (1,066.8 mm), and 48" (1,219.2 mm) openings. Standard width bars can be field cut to the next smallest opening width.
Backset:
  • 31/32" (24.6 mm), 1-1/8" (28.6 mm), or 1-1/2" (38.1 mm). Fits standard cutout used for the Adams Rite 4900 Heavy Duty Deadlatch on narrow stile aluminum doors.
Door Thickness:
  • Suits 1-3/4" (44.5 mm) standard. Device can be modified for thicker doors using Thick Door Kit available separately, or for thermal doors using Thermal Door Kit available separately.
Stile Width:
  • Minimum 2" (50.8 mm) stile. Fits narrow, medium, and wide stile aluminum doors.
Projection:
  • 2-5/8" (66.7 mm) when fully projected,1-5/8" (41.3 mm) when dogged.
Dogging:
  • Standard dogging with hex key or optional cylinder dogging. Electric dogging option also available.
Fasteners:
  • Standard machine screws.
Cylinders:
  • Accepts any standard 1" (25.4 mm) length, 1-5/32" (29.4 mm) diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder. Accommodates cylinder lengths from 1" (25.4 mm) to1-1/4" (31.8 mm). Available separately.
Cylinder x Fixed Pull Functions:
  • For function 03 (Night latch - key releases latch) select any standard 1" (25.4 mm) length,1-5/32" (29.4 mm) diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder. Function 03 is not applicable to 8475 Mortise Mid-Panel Exit Device.
Entry Trim Functions:
  • For entry trim function 08 (key locks/unlockslever) or function 09 (key releases lever) select any standard 1" (25.4 mm) length, 1-5/32" (29.4 mm) diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder. Accommodates cylinder lengths from 1" (25.4mm) to 1-1/4" (31.8 mm). Available separately.
Bolts and Strikes:
  • Mortise deadlatch with bolt measuring 5/8" x 1" x 5/8"
    (15.9 mm x 25.4 mm x 15.9 mm) throw. Solid brass bolt. A variety of strikes are availablefor different applications:
  • Standard strike of stainless steel included, Extended Lip Strike 8460 available separately, Long Face Strike 8455-01 available separately.
Standard Package:
  • Individually boxed.
Shipping Weight:
  • 11 lbs (4.99 kg)
Options:
  • Electrification Options: (MLR) Motorized Latch Retraction, Electric Latch Retraction(LR), Electric Dogging, Alarm
  • Monitoring, Cylinder Dogging, Matching End Caps
