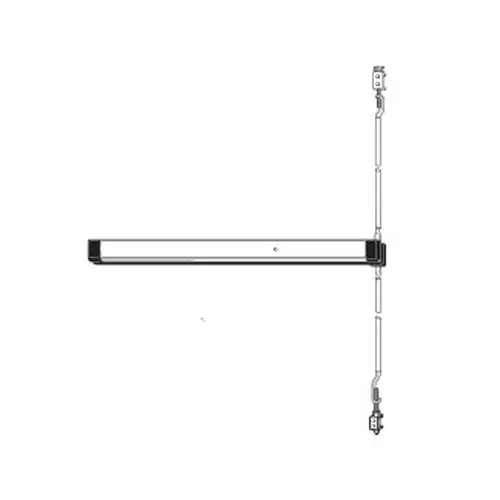

Adams Rite 8622C-36 Exit Device Dark Bronze Anodized Aluminum

Item #: 8622C-36 by Adams Rite

See reviewsSee reviews
See reviews summary
In Stock

$698.10

/each
SAVE UP TO 69.81
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 6 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Materials: Pushbar made of extruded aluminum, clad or anodized in a variety of finishes.
  • Handing: Device is non-handed. Lever Entry Trim is field reversible.
  • Pushbar Length: Standard sizes: dimensioned for 30”, 36”, 42”, and 48” openings. Standard width bars can be field cut to the next smallest opening width.
  • Bar Height: Standard model adjusts from 30” to 44”.
  • Door Height: Standard model fits up to 8 ft door, with bar height at 40”– 44”. For doors up to 10 ft. Tall Door Kit available separately: 8055 Tall Door Kit for 8100 or 3055 Tall Door Kit for 3100.
  • Door Thickness: Suits 1-3/4” standard, up to 2-1/4”.
  • Stile Width: 3100 – Minimum 3-3/4”. Door construction may require additional stile width to meet fire ratings and provide adequate strength. 8100 – Minimum 3-3/4”.
  • Projection: 2-15/16” when fully projected, 1-15/16”when dogged.
  • Dogging: Standard dogging with hex key or optional cylinder dogging for 8100 Series only. Electric dogging also available for 3100 and 8100 Series.
  • Fasteners: Standard self-tapping screws. Optional Sex Bolt Kits 26-0584 (two required per device). Specify finish.
  • Cylinders (available separately): See CYLINDERS for cylinder make, thumbturn and trim ring information.
  • Cylinder x Fixed Pull: (ANSI/BHMA Function 03): Accepts any standard Rim cylinder.
  • 3080 Entry Trim (ANSI/BHMA Functions 08, 09): Accepts any standard diameter Mortise cylinder with MS cam. Accommodates cylinder lengths from 1” to 1-1/4”. (Available separately)
  • Warranty: Five year limited.

Physical Appearance

Narrow Stile Pushpad

Package Qty

1

Minimum Stile Size

2 In.

Mechanical Function

Universal

Includes Trim

No

Includes Cylinder(s)

No

Dogging Options

Cylinder Dogging

Device Type

Concealed Vertical Rod

Fire Rated

No

Cylinder Type

1 In. Mortise w/MS Cam

Door Height

8 Ft.

Device Length

36 In.

Door Thickness

1-3/4 In. - 2-1/4 In.

Color Code

313

Color

Dark Bronze Anodized Aluminum

Hand

Non-Handed

Warranty

1 Year From Date of Purchase.

Aluminium Bottle Contents

Swinging

ProductType

Manual

Product Type

8600 Series

Product Overview

CVR Exit Device, Narrow Stile Aluminum Door, 36", Cylinder Dogging, Dark Bronze

Clean, unobtrusive design. Easy to install.

Patented "Starwheel" bolt interlocks door to frame, which is a unique feature for exit devices. The "Starwheel" bolt comes into play when the door closes. The interlocking noseguard and starwheel bolt close around the strike. The deadlocking slide springs over, locking the starwheel bolt to the strike. When the pushbar is depressed, the deadlocking slide moves back, allowing the door to unlock from the strike.
