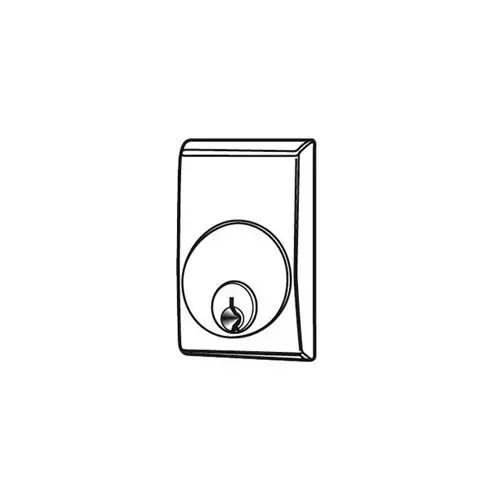

Adams Rite 8650 335 Exit Device Trim Black Anodized Aluminum

Item #: 8650 335 by Adams Rite

See reviewsSee reviews
See reviews summary
In Stock

$46.38

/each
SAVE UP TO 4.64

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 10 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Materials: Pushbar made of extruded aluminum, clad or anodized in a variety of finishes.
  • Handing: Device is non-handed. Lever Entry Trim is field reversible.
  • Pushbar Length: Standard sizes: dimensioned for 30”, 36”, 42”, and 48” openings. Standard width bars can be field cut to the next smallest opening width.
  • Bar Height: Standard model adjusts from 30” to 44”.
  • Door Height: Standard model fits up to 8 ft door, with bar height at 40”– 44”. For doors up to 10 ft. Tall Door Kit available separately: 8055 Tall Door Kit for 8100 or 3055 Tall Door Kit for 3100.
  • Door Thickness: Suits 1-3/4” standard, up to 2-1/4”.
  • Stile Width: 3100 – Minimum 3-3/4”. Door construction may require additional stile width to meet fire ratings and provide adequate strength. 8100 – Minimum 3-3/4”.
  • Projection: 2-15/16” when fully projected, 1-15/16”when dogged.
  • Dogging: Standard dogging with hex key or optional cylinder dogging for 8100 Series only. Electric dogging also available for 3100 and 8100 Series.
  • Fasteners: Standard self-tapping screws. Optional Sex Bolt Kits 26-0584 (two required per device). Specify finish.
  • Cylinders (available separately): See CYLINDERS for cylinder make, thumbturn and trim ring information.
  • Cylinder x Fixed Pull: (ANSI/BHMA Function 03): Accepts any standard Rim cylinder.
  • 3080 Entry Trim (ANSI/BHMA Functions 08, 09): Accepts any standard diameter Mortise cylinder with MS cam. Accommodates cylinder lengths from 1” to 1-1/4”. (Available separately)
  • Warranty: Five year limited.

Color

Black Anodized Aluminum

Fire Rated

No

Device Type

Trim

Package Qty

1

Includes Trim

No

Color Code

315/335

Product Type

8600 Series

Finish

Black Anodized

Function

Part/Component

Finish Description

Black Anodized

Series

8000 Series

ADA Compliant

No

Finish Family

Black

Function Family

Part/Component

For Use With

3600, 8500, 8600 Exit Devices

Manufacturer Parent

Assa Abloy

Sub-Series

PA_Exit_Device_Parts_adams_rite_1

Product Overview

Cylinder Escutcheon Kit, 3600, 8500, 8600 Series Devices, Black

Clean, unobtrusive design. Easy to install.

Patented "Starwheel" bolt interlocks door to frame, which is a unique feature for exit devices. The "Starwheel" bolt comes into play when the door closes. The interlocking noseguard and starwheel bolt close around the strike. The deadlocking slide springs over, locking the starwheel bolt to the strike. When the pushbar is depressed, the deadlocking slide moves back, allowing the door to unlock from the strike.
