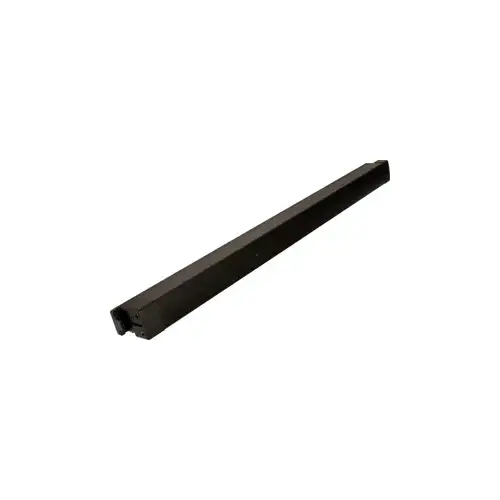

Narrow Rim Exit Device, Fits Narrow and Wide Stile Aluminum Doors, Black Anodized (335), 36"

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Adams Rite 8803-36 Narrow Rim Exit Device, Fits Narrow and Wide Stile Aluminum Doors, Black Anodized (335), 36"

Item #: 8803-36 by Adams Rite

See reviewsSee reviews
See reviews summary
In Stock

$481.97

/each
SAVE UP TO 48.20
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 88 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Materials: Pushbar made of extruded aluminum, clad or anodized in a variety of finishes.
  • Handing: Device is non-handed. Lever Entry Trim is field reversible.
  • Pushbar Length: Standard sizes: dimensioned for 30”, 36”, 42”, and 48” openings. Standard width bars can be field cut to the next smallest opening width.
  • Bar Height: Standard model adjusts from 30” to 44”.
  • Door Height: Standard model fits up to 8 ft door, with bar height at 40”– 44”. For doors up to 10 ft. Tall Door Kit available separately: 8055 Tall Door Kit for 8100 or 3055 Tall Door Kit for 3100.
  • Door Thickness: Suits 1-3/4” standard, up to 2-1/4”.
  • Stile Width: 3100 – Minimum 3-3/4”. Door construction may require additional stile width to meet fire ratings and provide adequate strength. 8100 – Minimum 3-3/4”.
  • Projection: 2-15/16” when fully projected, 1-15/16”when dogged.
  • Dogging: Standard dogging with hex key or optional cylinder dogging for 8100 Series only. Electric dogging also available for 3100 and 8100 Series.
  • Fasteners: Standard self-tapping screws. Optional Sex Bolt Kits 26-0584 (two required per device). Specify finish.
  • Cylinders (available separately): See CYLINDERS for cylinder make, thumbturn and trim ring information.
  • Cylinder x Fixed Pull: (ANSI/BHMA Function 03): Accepts any standard Rim cylinder.
  • 3080 Entry Trim (ANSI/BHMA Functions 08, 09): Accepts any standard diameter Mortise cylinder with MS cam. Accommodates cylinder lengths from 1” to 1-1/4”. (Available separately)
  • Warranty: Five year limited.

Hand

Non-Handed

Color

Black Anodized Aluminum

Color Code

315/335

Door Thickness

1-3/4 In. - 2-1/4 In.

Device Length

36 In.

Fire Rated

No

Device Type

Rim

Includes Trim

No

Mechanical Function

Universal

Minimum Stile Size

2 In.

Package Qty

1

Physical Appearance

Narrow Stile Pushpad

Product Type

8800 Series

Alternate Part Number-1

141165

Grade

Grade 1

Handing

Non-Handed

Door Width

36"

Options

Interlocking, StarWheel Bolt

Door Type

Aluminum

exit device type

Narrow Stile, Rim Exit Device

Dogging

Hex Key

Finish

Matte Black

Package Height

3.75"

Package Length

53.25"

Package Width

7.5"

Item Weight

10 lbs

Height

4.72

Length

53.15

Width

4.92

Dimension

36"

Function

Exit Only

No of inners

1

Includes Cylinder(s)

No

Material

Extruded Aluminum

Series

8800 Series

Manufacturer Warranty

Limited 5 Year Warranty

Hazardous Material

No

Product Overview
Patented Starwheel Bolt interlocks door to frame. Pushbar is anodized or clad, not plated, in a variety of finishes. Unobtrusive design for clean sight lines. Easy to install. Strong, durable construction for a high level of security.
