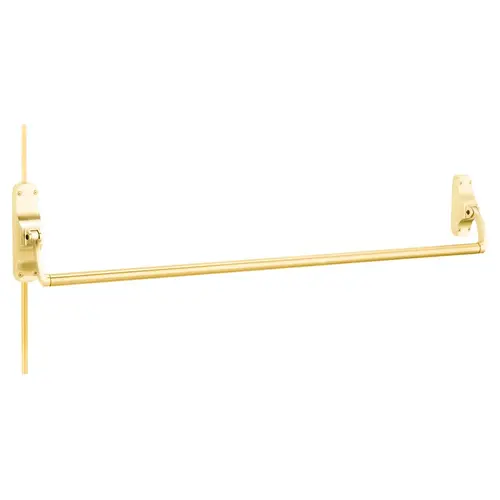

Von Duprin 8847EO-F US3 RHR Exit Device Bright Brass
Item #: 8847EO-F US3 RHR by Von Duprin
Brand: Von Duprin
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Device functions EO, L, TL
- Handing Field reversible
- Crossbar length 42" (1067 mm) field sizable
- Device centerline 39 13/16"
- Crossbar centerline to finished floor 36 13/16" (935 mm) at center
- Lock stile case 8 1/4" x 2 x 15/16" (210 mm x 51 mm x 24 mm)
- Hinge stile case 6" x 1 3/4" x 15/16" (152 mm x 44 mm x 24 mm)
- Crossbar projection Neutral – 4 7/8" (124 mm) Depressed – 4" (102 mm)
- Crossbar tubing 1" (25 mm) outside diameter
- Vertical rod 3 /8" (10 mm) hexagon
- Latchbolt 5 /8" (16mm) throw
- Fasteners All necessary mounting fasteners are included.
Color
Bright Brass
Physical Appearance
Wide Stile Crossbar
Hand
RHR
Grade
Grade 1
Fire Rated
Yes {Variable}
Special Marks
Fire rated 3 Hours {A}
Device Type
Concealed Vertical Rod
Mechanical Options
Fire Rated Device
Package Qty
1
Includes Trim
No
Color Code
605/US3
Base Material
Brass
Handing
Right Hand Reverse
Product Overview
Concealed Vertical Rod Exit Device, Exit Only, No Trim, Bright Brass
8847-F fire exit concealed vertical rod devices for all types of 8 Ft. x 8 Ft. (2438 mm x 2438 mm) double metal doors, UL listed, 3 hours and fits door stiles as narrow as 4 3/4 In. (121mm).
For all types of 8" x 8" (2438 mm x 2438 mm) double metal doors.
8847 surface mounted vertical rod devices are compatible for all types of single and double doors.
