Designer Series Glass To Glass Door Hinge 90 Degree Polished Brass

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

SALE

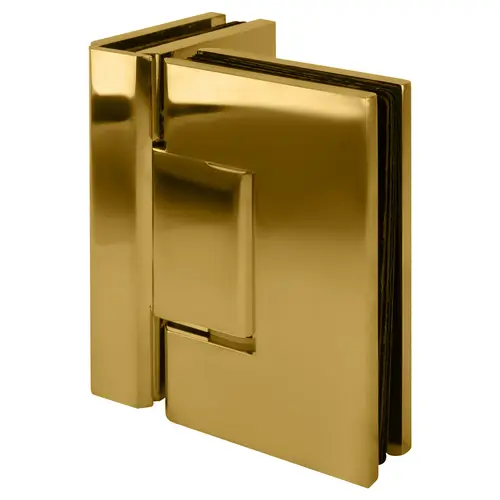

Brixwell H90GTGPB Designer Series Glass To Glass Door Hinge 90 Degree Polished Brass

Item #: H90GTGPB by Brixwell

See reviewsSee reviews
See reviews summary
In Stock

$57.53

115.85 /each
SAVE UP TO 5.75

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 13 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Finished to Match Stainless Steel Allen Style Clamp Screws (Phillips Screws Available Upon Request)
  • The hinge features self-closing of the door hence keeping the door always in a closed position when not in operation
  • The door closing position can be adjusted even after the installation of the door especially useful for those unaligned door situations
  • Self-Centering 0° Return with reversible 5° Pin (Preset 5° and 45° Pins Also Available)
  • Solid Forged Brass Construction
  • For convenient installation, the hinge comes with Allen Wrench a handheld hardware tool to fix screws
  • Precision Machined 300 Series Stainless Steel Components
  • Dual Precision Wound Stainless Steel Return Springs
  • Self-Closing from 25 Degrees
  • Mouse Ear Design
  • Designed for 3/8" and 1/2" Glass
  • Wall Mount Hinges Include Finished to Match Stainless Steel Mounting Screws
  • Allen Wrench Included
  • Rated at 40lbs Per Hinge

Height

4

Finish

Polished Brass

Material

Solid Forged Brass

Type

90 Degree

Mounting Style

Glass to Glass mount

Pack Size

1

Angle Degree

90 Degree

Designed For

3/8" and 1/2" Glass

Self-Closing

From 25 Degrees

Other Specifications

Maximum door weight: - 2-hinge - 80lbs (36kg) - 3-hinge - 120lbs (54kg) Maximum door width: - 2-hinge - 30" (762mm) - 3-hinge - 36" (914mm)

Hardware Includes

Matching Finish Stainless Steel Allen Style Clamp Screws and Allen Wrench

Series

Designer

Glass Fabrication Required

Cutout

Edge Profile

Square

Adjustable

No

Self-Centering

Yes

5 Degree Pre-Set

No

Glass To Glass Angle (Degrees)

90

Max Door Width - 3 Hinges (IN)

36

Max Door Weight-2 Hinges (Lbs)

80

Glazing Thickness (Inches)

1/2, 3/8

Max Door Width - 2 Hinges (IN)

30

Max Door Weight-3 Hinges (Lbs)

120

Product Overview
The Designer Series Glass to Glass Door Hinge is made with high-grade metal components, which makes it a durable product for consumption. The hinge will not only hold the door together safely but also blend in with the decor as these are available in a variety of polishes to suit your requirements.
