9130 Series Benchmark Electromechanical Operator, Anodized Aluminum

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

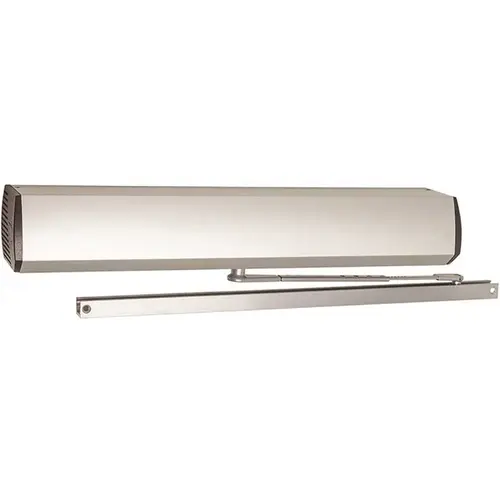

LCN 9131-STD ANCLR 9130 Series Benchmark Electromechanical Operator, Anodized Aluminum

Item #: 9131-STD ANCLR by LCN

UPC #: 840067661345

See reviewsSee reviews
See reviews summary
In Stock

$3,725.65

/each
SAVE UP TO 372.57

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 14 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • 9130 series operator is shipped with motor gearbox, control box, mounting plate, standard arm, metal cover, standard track, wood and machine screws
  • Single interior door, surface mounted
  • ADA compliant
  • On/Off switch included as standard
  • Non-handed for either right or left swinging door
  • 27” cover is standard. Full length covers available up to 36” for single doors
  • All potentiometers clearly labeled with their functions
  • LED lights indicate power to control box and motor gearbox

Grade

Grade 1

Cover

Full Metal

Type

Surface

Hand

Non-Handed

Color

Satin Aluminum Clear Anodized

Color Code

628/US28

Mounting Style

Slide Track

BAA Qualified

Yes

Package Volume

0

Mounting Location

Pull Side

Package Qty

1

Special Marks

Complies with ADA accessibility guidelines

Voltage

120 volt

Finish

Anodized Aluminum

Function

Pull Side Operator

Mount

Pull Side

Finish Description

Anodized Aluminum

Product Type

Door Operator

Series

9130 Series

Warranty

2 Year

Pack Size

1

Healthy Solution

Touchless

UNSPSC

30171514

ADA Compliant

YES

Finish Family

Aluminum

Power Input

120V

Standards

Grade 1 A156.19; UL325/228; ADA; Meets BAA

Closer Arm Type

Standard Single Lever Arm and Track

Function Family

Power Door Operator

For Door Width

30" to 48"

Minimum Top Rail Width

2 Inch

Fastener Type

Wood and Machine Screws

Features

The Benchmark is a Cost-Effective Solution for Retrofitting an Activated or Manual Door

Mounting Type

Pull Side

Manufacturer Parent

Allegion

Minimum Door Width

30 Inch

Frame Reveal

1/8 Inch

healthy_solution

Touchless

Sub-Series

DC_Power_Operators_lcn_6

Product Overview
9130 Series BenchmarkElectrically Powered Closer

The 9130 BENCHMARK by LCN is an electrically powered low-energy operator. It provides easy access for people with disabilities, or the elderly. Designed primarily for automatic opening applications that occasionally require manual opening. The BENCHMARK is a cost-effective solution for retrofitting an activated or manual door.

Specifications: Certifications:
  • Grade 1 - A156.19, UL325, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act
Handing:
  • Non-Handed
Door Width:
  • 30" - 48"
  • 30" minimum door width for 27"
  • 36" door width only for full length pull operator
Warranty:
  • 2 years
Cover:
  • Metal 27", standard
  • Metal 36", optional
Fasteners:
  • Wood and machine screws
Mounting:
  • Single interior door, surface mount, offset pivot / butt hinge (Pull Side)
Arms:
  • Standard arm and track
Finishes/Colors/Powder Coat:
  • Anodized aluminum, standard
  • Dark bronze, optional
