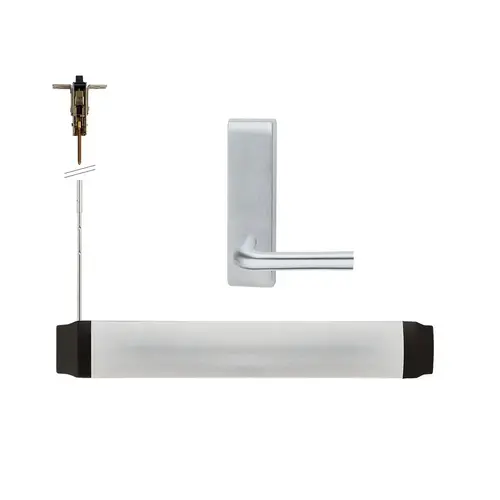

Von Duprin 9447L-BE-02-F 26D LBR Exit Device Satin Chrome

Item #: 9447L-BE-02-F 26D LBR by Von Duprin

See reviewsSee reviews
See reviews summary

$2,942.20

/each
SAVE UP TO 294.22
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Device functions Device ships EO, DT, TL, L Blank escutcheon (BE) available
  • Device lengths 2'6" Up to 2'9" for 24 5/32" device 2'10" up to 4' for 30 5/32" device
  • Device centerline from finished floor 39 5/8" (1006 mm)
  • Projection 1 5 /8" (41 mm) neutral 1 1/4" (32 mm) depressed
  • Latchbolt 5 /8" (16 mm) throw deadlocking latchbolt standard
  • Door undercut 1 /4" (7 mm) maximum
  • Top & bottom latch case assembly 4 1/2" X 2 1/8" x 1 1/2" (114 mm x 54 mm x 38 mm)
  • Vertical rods Two-piece adjustable rods, door 6'8" (2032 mm) to 8'0" (2540 mm) can be adjusted by removing the latchside endcap
  • Fasteners Included for surface mounting to recessed door prep and through bolting to trim

Trim Design

02-Lever

Color

Satin Chrome

Physical Appearance

Inpacted Pushpad

Grade

Grade 1

Fire Rated

Yes {Variable}

Special Marks

Fire rated Yes {Variable}

Device Type

Concealed Vertical Rod

Mechanical Options

Less Bottom Rod

Package Qty

1

Includes Trim

Yes

Trim Type

Passage Lever

Color Code

626/US26D

Base Material

Brass or Bronze

Product Overview

Inpacted Exit Device, Blank Escutcheon Lever Trim, Satin Chrome

94/95 Inpact concealed vertical rod fire exit device for use on factory prepped steel doors, not available for wood doors. The Inpact device is UL listed for panic and fire, ANSI/BHMA 156.3 Grade 1. The Inpact device is non-handed.

94/95 Inpact concealed vertical rod device for use on factory prepped steel doors, not available for wood doors.

The Inpact device is UL listed for panic and fire, ANSI/BHMA 156.3 Grade 1. The Inpact device is non-handed.
