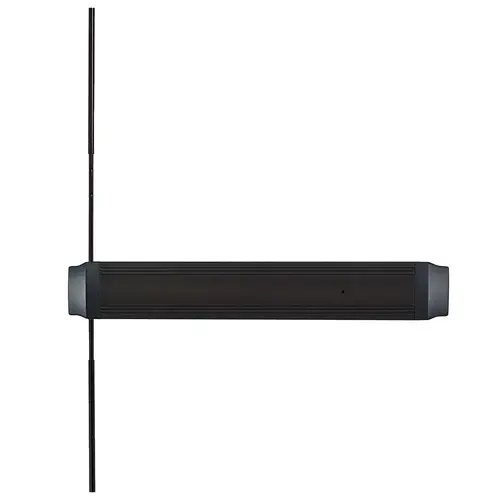

Von Duprin 9548EO 313 Exit Device Dark Bronze Anodized Aluminum
Item #: 9548EO 313 by Von Duprin
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Device functions Device ships EO, DT, TL, L Blank escutcheon (BE) available
- Device lengths 2'6" Up to 2'9" for 24 5/32" device 2'10" up to 4' for 30 5/32" device
- Device centerline from finished floor 39 5/8" (1006 mm)
- Projection 1 5 /8" (41 mm) neutral 1 1/4" (32 mm) depressed
- Latchbolt 5 /8" (16 mm) throw deadlocking latchbolt standard
- Door undercut 1 /4" (7 mm) maximum
- Top & bottom latch case assembly 4 1/2" X 2 1/8" x 1 1/2" (114 mm x 54 mm x 38 mm)
- Vertical rods Two-piece adjustable rods, door 6'8" (2032 mm) to 8'0" (2540 mm) can be adjusted by removing the latchside endcap
- Fasteners Included for surface mounting to recessed door prep and through bolting to trim
Grade
Grade 1
Color
Dark Bronze Anodized Aluminum
Color Code
313
Fire Rated
No
Device Type
Concealed Vertical Rod
Includes Trim
No
Package Qty
1
Physical Appearance
Inpacted Pushpad
Base Material
Aluminum
Product Overview
Inpacted Exit Device, Exit Only, No Trim, Dark Bronze Anodized Aluminum
94/95 Inpact concealed vertical rod device for use on factory prepped steel doors, not available for wood doors. The Inpact device is UL listed for panic and fire, ANSI/BHMA 156.3 Grade 1. The Inpact device is non-handed.
94/95 Inpact concealed vertical rod device for use on factory prepped steel doors, not available for wood doors.
The Inpact device is UL listed for panic and fire, ANSI/BHMA 156.3 Grade 1. The Inpact device is non-handed.
