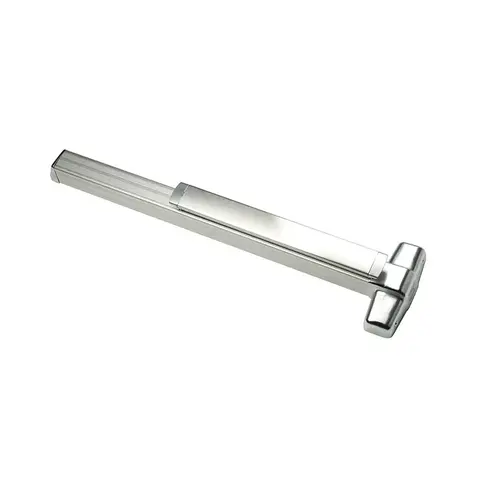

Von Duprin 9947EO-F 3 26D 99 Series Concealed Vertical Rod Exit Device Satin Chrome

Item #: 9947EO-F 3 26D by Von Duprin

See reviewsSee reviews
In Stock

$2,517.84

/each
SAVE UP TO 251.78

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
  • Device lengths: 2' 2" (610 mm) Door size (shipped less UL label) 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
  • Device centerline from finished floor: 395 /8" (1006 mm) Standard Adjustable from 355 /8" (905mm) to 495 /8" (1260mm)
  • Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
  • Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
  • Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
  • Latch bolt: Deadlocking top & bottom bolt, 5 /8" (16mm) throw
  • Door undercut: 1 /4" (7mm) recommended
  • Top & bottom Latch case: 4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm)
  • Vertical rods: Round 2-piece adjustable rods – Top rod adjustable from 6'8" (2027mm) to 8'4"(2533mm). Bottom rod adjustable 35 5/8" (905 mm) to 49 5/8" (1260 mm). Extension rod kits available for doors over 8'4" (2533mm).
  • Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal doors. Optional 425 SNB available.

Door Height

Up to 8 Foot 4 Inches

Package Volume

1929.375

Color

Satin Chrome

Physical Appearance

Wide Stile Pushpad

Case Width

16"

Product Width

3.75"

Hand

Non-Handed

Grade

Grade 1

Fire Rated

Yes

Special Marks

Fire rated 3 Hours {A}

Product Height

8"

Device Type

Concealed Vertical Rod Device

Strike Bottom

385A

Case Length

41"

Package Qty

1

Door Width

2 Ft. 4 In. - 3 Ft.

Package Height

10.5"

Includes Trim

No

Device Length

36 Inch (3 Foot)

Door Thickness

1-3/4" (44 mm) to 2-1/4" (57 mm)

Case Height

11.75"

Strike Top

388

Package Width

5"

Case Volume

7708

Color Code

626/US26D

Origin

USA

BAA Qualified

Yes

Product Length

33"

Base Material

Brass or Bronze

Minimum Stile Size

4-1/4"

Door Material

Metal

Package Length

36.75"

For Door Thickness

1-3/4 Inch to 2-1/4 Inch

Device Trim ANSI Function

01

Manufacturer Parent

Allegion

Device Rating

Fire Exit Hardware

Finish Description

Satin Chrome

Stile

Wide Stile

For Door Height

8 Foot 4 Inch

Function

Exit Only

Latch Type

Deadlocking

Function Description

Exit Only - No Trim

ANSI Function

01

Sub-Series

EDT_Concealed_Ver_Rod_Devices_Von_Duprin_412

Trim Style

EO

Device Centerline From Finished Floor

Standard: 39-5/8 in; Adjustable: 35-5/8 in to 49-5/8 in

Center Case Dimensions

8 Inch x 2-3/4 Inch x 2-3/8 Inch

Application

Single and Double Doors; Higher Education; K-12 Schools; Hospitals; Hospitality and Government Buildings

Vertical Rod Adjustment

Top Rod Adjustable: 6 ft 8 Inch to 8 ft 4 Inch; Bottom Rod Adjustable: 35-5/8 Inch to 49-5/8 Inch

Length

3

Device Trim Function

No Outside Trim

Function Family

Exit Only-No Trim

Standards

ANSI/BHMA A156.3 2014 Grade 1 Certified; ANSI/UL 10C; ANSI/UL 305; CAN/ULC-S104; CAN/ULC-S132

Device Bar Projection

Pushbar Neutral: 3-13/16 Inch; Pushbar Depressed: 3-1/16 Inch

Trim Options

EO Exit Only

Product Type

Exit Device

Features

Grooved Case; Push Pad; Narrow Stile; Modular Design

Strike Type

Top: 338; Bottom: 385A

Bolt Throw

5/8 Inch

Dogging Options

Hex Key Dogging

Mechanism Case Dimensions

2-1/4 Inch x 2-1/4 Inch

For Door Width

2 Foot 4 Inch to 3 Foot

Series

9947 Pushbar

Recommended Door Undercut

1/4 Inch

Included Components

Fasteners and Sex Bolts (SNB) for 1-3/4" to 2-1/4" Thick Wood Doors

Finish Family

Satin Chrome

Product Overview
9947 SeriesConcealed vertical rod device

9947 Concealed vertical rod device for use on single or double metal doors, UL listed for panic exit hardware. These are certified to ANSI/BHMA A156.3 2014, Grade 1. The 9947 device has a smooth mechanism case. The concealed vertical rod device is non-handed except when the following device options are used: SD (special dogging), or SS (signal switch).

Specifications: Device functions:
  • Device ships EO/DT/NL; Field selectable;
  • For TP, K or L remove NL drive screw from device.
Device lengths:
  • 2' - 2' (610mm) Door size
  • 3' - 2'4' to 3' (711mm to 914mm) Door size
  • 4' - 2'10" to 4' (864mm to 1219mm) Door size
Device centerline from finished floor:
  • 39 5/8" (1006 mm) Standard
  • Adjustable from 35 5/8" (905mm) to 49 5/8" (1260mm)
Center case:
  • 8" x 2 3/4" x2 3/8"
  • (203mm x 70mm x 60mm)
Mechanism case:
  • 2 1/4" x 2 1/4"
  • (57mm x 57mm)
Projection:
  • Pushbar neutral – 3 13/16" (97mm)
  • Pushbar depressed – 3 1/16" (78mm)
Latch bolt:
  • Deadlocking top and bottom bolt, 5/8" (16mm) throw
Door undercut:
  • 1/4" (7mm) recommended
Top and bottomlatch case:
  • 4 1/2" x 2 1/8" x 1 1/2"
  • (114mm x 54mm x 38mm)
Vertical rods:
  • Round 2-piece adjustable rods – Top rod adjustable from 6'8" (2027mm) to 8'4"(2533mm). Bottom rod adjustable 35 5/8" (905mm) to 49 5/8" (1260mm). Extension rod kits available for doors over 8'4" (2533mm).
Finishes:
  • 605, 606, 612, 625, 626/626AM, 628, 710, 711 and 643e
  • (619 and 630 available with 98 Series only)
Fasteners and sex bolts (SNB):
  • Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal doors (Optional 425 SNB available)
Electrified options:
  • LX - Latch bolt monitor switch
  • RX - Request to exit
  • RX2 - Double request to exit
  • E - Electric locking and unlocking trim
  • EL - Electric latch retraction
  • QEL - Quiet electric latch retraction
  • SS - Signal switch
  • CX - Chexit delayed exit
  • ALK - Alarm exit kit
  • WP-RX - Waterproof request to exit
  • CON - Allegion Connect
Mechanical options:
  • GBK - Glass bead kit
  • LBR - Less bottom rod
  • PL - Pullman latch
  • PN - Pneumatic latch retraction
  • SNB - Sex bolts
  • SEC - Security screws
  • WH - Weep holes
Dogging feature:
  • Hex key dogging standard
Dogging options:
  • CD - Cylinder dogging
  • CD-CX - Chexit cylinder dogging
  • CDSI - Cylinder dogging with security indicator
  • HDSI - Hex dogging with security indicator
  • SD - Special center case dogging
  • LD - Less dogging
  • DI - Dogging indicator
  • CI - Cylinder dogging indicator
Strikes: Top:
  • 338 – Unfinished
Bottom:
  • 385A – Unfinished
