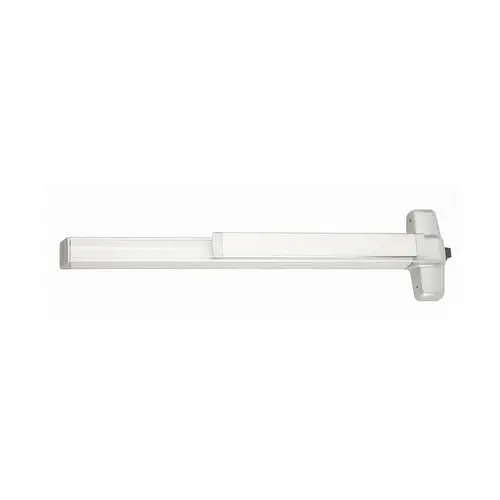

99EO-F Rim Fire Exit Device Satin Anodized

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Von Duprin 99EO-F 3 US28Click To Copy 99EO-F Rim Fire Exit Device Satin Anodized

Item #: 99EO-F 3 US28 by Von Duprin

See reviewsSee reviews
In Stock

$1,516.77

/each
SAVE UP TO 151.68

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 24 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
  • Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
  • Device centerline from finished floor: 39 13/16" (1011 mm) 39 11/16" (1008 mm) with mullion
  • Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
  • Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
  • Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
  • Latch bolt: Deadlocking, 3/4" (19mm) throw
  • Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional 425 SNB available, see page 9 for quantities.

Package Volume

1929.375

Color

Satin Aluminum Clear Anodized

Physical Appearance

Wide Stile Pushpad

Case Width

16"

Product Width

3.75"

Hand

Non-Handed

Grade

Grade 1

Fire Rated

Yes

Special Marks

Fire rated 3 Hours {A}

Product Height

8"

Device Type

Rim Device

Case Length

41"

Package Qty

1

Door Width

2 Ft. 4 In. - 3 Ft.

Package Height

10.5"

Includes Trim

No

Device Length

36 Inch (3 Foot)

Door Thickness

1-3/4" - 2-1/4"

Case Height

11.75"

Package Width

5"

Case Volume

7708

Color Code

628/US28

Origin

USA

BAA Qualified

Yes

Product Length

33"

Base Material

Aluminum

Minimum Stile Size

4-1/2"

Door Material

Metal or Wood

Package Length

36.75"

For Door Thickness

1-3/4 Inch

Device Trim ANSI Function

01

Manufacturer Parent

Allegion

Stile Width

4-1/2 Inch

Device Rating

Fire Exit Hardware

Finish Description

Satin Aluminum

Stile

Wide Stile

Function

Exit Only

Latch Type

Deadlocking

Function Description

Exit Only - No Trim

ANSI Function

01

Sub-Series

EDT_Rim_Devices_von_duprin_100

Trim Style

EO

Device Centerline From Finished Floor

39-13/16 Inch; 39-11/16 Inch with Mullion

Center Case Dimensions

8 Inch x 2-3/4 Inch x 2-3/8 Inch

Application

Single Doors and Double Doors With Mullion; Higher Education; K-12 Schools; Hospitals; Hospitality and Government Buildings

Length

3

Device Trim Function

Exit Only (No Outside Trim)

Function Family

Exit Only-No Trim

Standards

ANSI/BHMA A156.3 2014 Grade 1 Certified; ANSI/UL 10C; ANSI/UL 305; CAN/ULC S104; CAN/ULC S132

Device Bar Projection

Push Bar Neutral: 3-13/16 Inch; Push Bar Depressed: 3-1/16 Inch

Trim Options

EO Exit Only

Product Type

Exit Device

Features

Push Pad; Wide Stile; Heavy Duty

Bolt Throw

3/4 Inch

Dogging Options

Less Dogging

Mechanism Case Dimensions

2-1/4 Inch x 2-1/4 Inch

Series

99 Pushbar

Finish Family

Aluminum

Product Overview
99-F SeriesRim exit device

99-F Rim fire exit devices are certified to ANSI/BHMA A156.3 2014, Grade 1 and UL listed for fire exit hardware. The 99-F device has a grooved case. The rim device is non-handed except when the following device options are used: -2 (double cylinder) or SS (signal switch).

Specifications: Device functions:
  • Device ships EO/DT/N; Field selectable;
  • For TP, K or L remove NL drive screw from device
Device lengths:
  • 3' - 2'4' to 3' (711mm to 914mm) Door size
  • 4' - 2'10" to 4' (864mm to 1219mm) Door size
Device centerline from finished floor:
  • 39 13/16" (1011mm)
  • 39 11/16" (1008mm) with mullion
Center case:
  • 8" x 2 3/4" x 2 3/8"
  • (203mm x 70mm x 60mm)
Mechanism case:
  • 2 1/4" x 2 1/4"
  • (57mm x 57mm)
Projection:
  • Pushbar neutral – 3 13/16" (97mm)
  • Pushbar depressed – 3 1/16" (78mm)
Latch bolt:
  • Deadlocking, 3/4" (19mm) throw
Finishes:
  • 605, 606, 612, 626/626AM, 628, 710, 711 and 643e
  • (619 and 630 available with 98 Series only)
Fasteners and sex bolts (SNB):
  • Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors; Optional 425 SNB available for metal doors; 425 and 825 SNB required on wood doors without SLM blocking
Electrified options:
  • LX - Latch bolt monitor switch
  • RX - Request to exit
  • RX2 - Double request to exit
  • E - Electric locking and unlocking trim
  • EL - Electric latch retraction
  • QEL - Quiet electric latch retraction
  • SS - Signal switch
  • CX - Chexit delayed exit
  • ALK - Alarm exit kit
  • WP-RX - Waterproof request to exit
  • CON - Allegion Connect
Mechanical options:
  • -2 - Double cylinder
  • -2SI - Double cylinder with security indicator
  • AX - Accessible device
  • GBK - Glass bead kit
  • PN - Pneumatic latch retraction
  • QM - Quiet mechanical
  • SNB - Sex bolts
  • SEC - Security screws
  • SLM - Special laminate material blocking
  • WH - Weep holes
  • XP - Extra protection
Dogging option:
  • No mechanical dogging;
  • EL and QEL options available
Strikes:
  • 299F – Dull black, 499F with mullions
