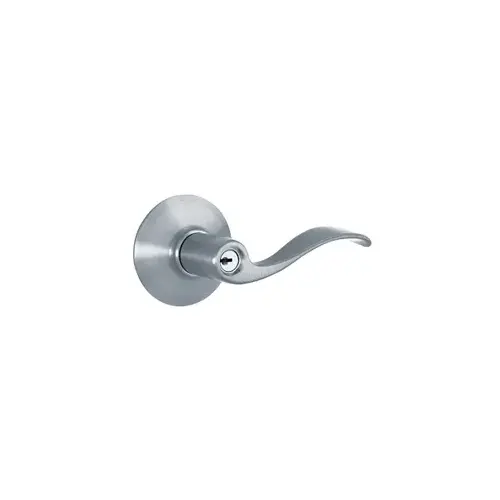

Schlage Residential F51A ACC 626 F51AACC626 16-211 10-063 K4 Accent Entry - Satin Chrome
Item #: F51A ACC 626 by Schlage Residential
UPC #: 043156421442
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Easy 3-Step Installation, Only a Screwdriver Needed
- Reversible Handing
- Applications: Residential single- and multi-family doors
- Certifications: ANSI A156.2, 1996, Series 4000 Grade 2
- Metal Construction Adds Strength, Security and Durability
- Lifetime Mechanical & Finish Warranty
- Quality Finishes Coordinate with Plumbing and Lighting
- Certified Commercial Grade 2
- U.L. Listed: Locks for up to three-hour fire doors available
- Door thickness range: 1-3/8" to 1-3/4" (35mm-44mm) standard
- Graded Best in Residential Security, Durability, and Finish
- Entry (Keyed) Function - Locked by Key & Rotating Cylinder from Outside; Unlocked by Key on Outside or when opened from inside
- Backset: Universal latch standard, fits either 2-3/8" (60mm) or 2-3/4" (70mm) backsets. 5" (127mm) backset available
- ADA compliant: Yes
Function
Keyed Entry
Finish
Satin Chrome
Series
F Series
Backset
2-3/8 Inch or 2-3/4 Inch
Design
Accent Lever
Strike
Full Lip 2-1/4 Inch, Radius Corner
Color Code
626/US26D
Grade
ANSI/BHMA Grade 2
Keyway
SC1 5-Pin Pin & Tumbler
Cylinder Type
Conventional Cylinder
Finish Description
Satin Chrome
Lever Style
ACC-Accent
Keyblank Grouping
SCHR-C-5-1
Rose/Escutcheon Trim
Round Rose
Product Type
Cylindrical Lock
Handing
Reversible
Projection
2.7188
Door Thickness
1-3/8" to 1-3/4"
Bore Size
2.1250
Product Length
5.1560 Inches
Included Components
Keyed Entry Levers; Roses; Latch; Strike; Mounting Hardware
Door Cross Bore
2.125 Inch
Keying Charges
Residential-Conventional
Product Material
Zinc
Box Length
7.0000
Box Width
6.0000
Box Height
3.2500
Application
Residential; Standard Doors
Warranty
Lifetime Limited Mechanical/Finish
Bolt Throw
1/2 Inch
Strike Type
Radius Corner Full Lip
ADA Compliant
YES
Finish Family
Satin Chrome
Bolt Type
Deadlatching
Standards
ANSI/BHMA A156.2-2011; ANSI/BHMA A156.39-2015; UL Listed; ADA Compliant
Faceplate Dimension
1" x 2-1/4"
Door Preparation
Cross Bore: 2-1/8"; Edge Bore: 1"
For Door Thickness
1-3/8" to 1-3/4"
Function Family
Entry/Entrance/Office
Product Projection
2.7188 Inch
Features
Highest Industry Ratings for Residential Security, Durability and Finish; Installs in Minutes; Reversible Levers
Strike Size
1-5/8" x 2-1/4"
Latch Type
Deadlatch
Manufacturer Parent
Allegion
Door Edge Bore
1 Inch
Box Dimensions (L x W x H)
3.25x6x7"
Lever Style Family
Wave Lever
Sub-Series
F51A-ACC
Collection
Accent
Package Height
3.25"
Package Length
7"
Package Width
6"
Item Weight
2.29 lbs
Product Overview
The Schlage Accent Lever Keyed Entry Lock in Satin Chrome is perfect for use on entry doors where keyed locking is needed. The Accent Lever is widely popular for its elegant wave-like design that effortlessly matches a room's style without overshadowing it, and becomes especially edgy unlocks when finished in Satin Chrome. Plus, it's been designed and tested with strength and durability in mind.
