Adams Rite 406601130 Mortise Cylinder Satin Aluminum Clear Anodized
Item #: 406601130 by Adams Rite
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Thumbturn Cylinder
- Operates Lock Without Key
- Interchanges with Standard 1-5/32" Mortise Cylinder
- Cams Available To Suit Particular Adams Rite Lock
- Warranted Free From Defects In Workmanship And Materials Under Normal Use And Service
Finish
Satin Aluminum
Series
Parts/Accessories
Finish Description
Satin Aluminum
Product Type
Lock Part/Accessory
Warranty
1 Year From Date of Purchase.
Aluminium Bottle Contents
Swinging
ProductType
Manual
Manufacturer Parent
Assa Abloy
For Use With
For MS Lock; 4900 Deadlatches
Product Width
1-5/32 Inch
Function
Part/Component
Sub-Series
PA_Locks_Parts_adams_rite_28
ADA Compliant
No
Function Family
Part/Component
Features
To Operate Deadlock/Deadlatch Without Key; Cam's are Available to Suit the Particular Adams Rite Deadlock/Deadlatch
Product Length
1 Inch
Included Components
Trim Ring
Finish Family
Aluminum
Manufacturer Warranty
Limited 5 Year Warranty
Hazardous Material
No
No of inners
1
Product Overview

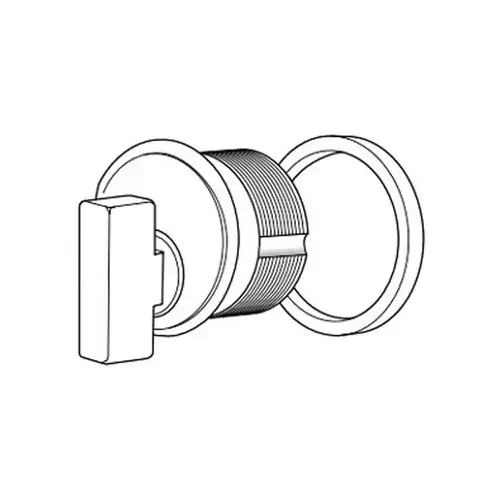

4036 & 4066Mortise Cylinder and Thumbturn
The 4036 Mortise Cylinder provides five-pin security with most Adams Rite deadlocks or deadlatches. The 4066 Thumbturn operates deadlocks or deadlatches without a key.
Function: 4036:- A standard 1" (25.4 mm) length, 1 5/32" (29.4 mm) diameter cylinder with five-pin tumbler security. Designed to operate any Adams Rite deadlock or deadlatch requiring a mortise cylinder. Close tolerance manufacturing achieve set screw grooves and cam geometry that are true on their respective centerlines. This ensures proper mating and operation with the locking or latching mechanism. Select cam to suit particular Adams Rite deadlock or deadlatch.
- To operate deadlock or deadlatch without key. Interchanges with standard1" (25.4 mm) length, 1 5/32" (29.4 mm) diameter mortise cylinder. Cams are available to suit the particular Adams Rite deadlock or deadlatch. See next page for cam specifications.
- Furnished. 1/4" (6.4 mm) thick, suitable for 1 3/4" (44.5 mm) thick doors. Available by special order for other door thicknesses.
- All cylinders furnished with two keys per cylinder. Available in keyed different (KD), or keyed alike pairs (KA2). Keyed alike 50 are available by special order in quantity of 50 cylinders only
- Individually packed with trim ring. 4036 furnished with keys.
- 1/2 lb (0.23kg)
- Adams Rite deadlocks and deadlatches are designed to accept standard 1" (25.4 mm) length, 1 5/32" (29.4 mm) diameter mortise cylinders of all popular makes. This means that the entrance can be keyed to match the system used throughout the building on other types of doors. Care must be taken, however, to specify the proper cam for each type of lock, as these are not generally interchangeable. The cam shapes shown are available from the listed cylinder manufacturers and will be supplied by them with the cylinder when specified or available separately. Because of variations in the attachment of cams to cylinders and other construction differences, it is advisable to NOT attempt using one manufacturer's cylinder with another manufacturer's cam.
- 628 - Clear Anodized
- 335 - Black Anodized
- 313 - Dark Bronze Anodized
- 130 - To match 628 Clear Anodized
