MS1861 Series Bottom Rail Deadbolt Zinc Plated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

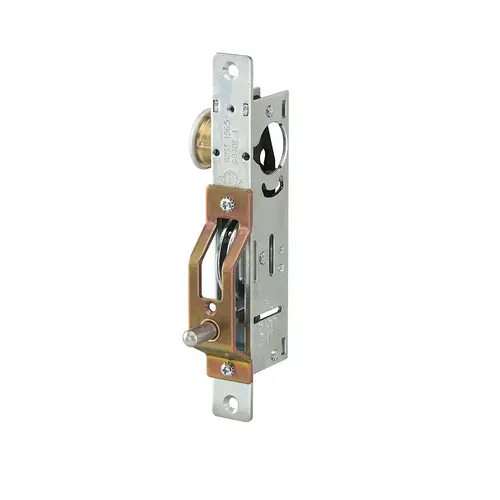

Adams Rite MS1861-01-603 MS1861 Series Bottom Rail Deadbolt Zinc Plated

Item #: MS1861-01-603 by Adams Rite

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$149.33

/each
SAVE UP TO 14.93
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 1 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Finish

Zinc Plated

Function

Door Bolt

Finish Description

Zinc Plated

Product Type

Storefront Lock

Series

MS1861 Series

Warranty

1 Year From Date of Purchase.

Aluminium Bottle Contents

Swinging

ProductType

Manual

Manufacturer Parent

Assa Abloy

Corrosion Resistant

Yes

Case Dimensions

1" x 6" x 1-13/16"

Sub-Series

MS1861-01-603

ADA Compliant

No

Deadbolt Throw

13/16 Inch

For Door Type

Aluminum Doors; Glass Doors; Swinging Doors; Sliding Doors

Deadbolt Material

Stainless Steel

Features

Vertical Bolt Only; Key can be Removed only When Bolts are in a Positively Locked or Unlocked Position; Lock Accepts Cylinder From Either or Both Sides

Color Code

603/US2G

Deadbolt Size

3/8 Inch

Backset

2-1/4 Inch

Included Components

Mounting Screws

Cylinder Type Used

Accepts Standard 1" Length, 1-5/32" Diameter Mortise Cylinder With MS Cam (4036 Mortise Cylinder or 4066 Thumbturn)

Finish Family

Zinc

Product Overview
MS1861 SeriesMS® Bottom Rail Deadbolt

MS1861 Bottom Rail Deadbolt provides maximum security with MS deadbolt locking mechanism. It utilizes hardened steel bolts for the limited space of ultra-narrow stile doors.

Function:

The MS1861 lies horizontally in the bottom rail of ultra-narrow stile doors which have insufficient vertical space for a lock, or tempered glass doors which have no stile at all. The hardened steel cylindrical bolts allow simple drilled strike holes of a relatively small size to minimize the nuisance and danger presented by some threshold strikes in collecting debris or snagging on high-heeled shoes. MS1861-02 locks either single-leaf or pairs of doors. Not recommended for wood doors.

Operation:

360° turn of key or thumbturn projects or retracts bolt(s). Key can be removed only when bolts are in a positively locked or unlocked position. Lock accepts any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder or thumbturn such as the 4066 Thumbturn, available separately. Lock accepts cylinder from either or both sides.

Features:Cylinder Backset:

Minimum backset is approximately 2-1/4" [57.2 mm] for the MS1861- 01 configuration with vertical bolt only. The MS1861-02 configuration with both vertical and horizontal bolts requires placement of cylinder center line 5-3/4" [146.1 mm] from nose of door. Both have cylinder center 1-7/8" [47.6 mm] above bottom edge of door.

Case:

Measures 1" x 6" x 1-13/16" [25.4 mm x 152.4 mm x 46.0 mm]. Steel with corrosion-resistant plating.

Bolt:

3/8" [9.5 mm] diameter. Stainless steel vertical threshold bolt has 13/16" [20.6 mm] throw. Hardened steel horizontal bolt has 1-1/8" [28.6 mm] throw.

Strike:

In metal installation, 7/16" [11.1 mm] drilled holes in threshold are required. For MS1861- 02 configuration with both vertical and horizontal bolts, drilled holes are also required in jamb or opposite door.

Standard Package:

Individually boxed with mounting screws. Cylinder and/or thumbturn available separately. If required, tube spacers are available separately.

Shipping Weight:
  • MS1861-01: 1-3/4 lbs [0.79 kg]
  • MS1861-02: 2 lbs [0.91 kg]
Options:
  • Vertical bolt only (-01)
  • Vertical and horizontal bolts (-02)
