Schlage Residential F92 ADD 622 F92ADD622 Addison Dummy Handleset for F94 Trims - Matte Black
Item #: F92 ADD 622 by Schlage Residential
UPC #: 043156166718
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Exterior Active Handleset - Outside Grip & Deadbolt Trim of F60; Order with F59 for Complete Handleset
- Exterior Inactive Handleset - Outside Grip of F93; Includes Entry Handleset & Dummy Cylinder
- One-Tool Installation - Installs with Just a Phillips Screwdriver
- Applications: Residential single and multi-family entrance doors.
- Reversible Handing
- Keying: F-Series handlesets are 5-pin tumbler with two keys per lock.
- Patented Throughbolt Slides Up and Down So You Don't Have to Patch/Redrill Your Door
- Lifetime Mechanical & Finish Warranty
- Certified Commercial Grade 1
- Backset: Universal latches and deadbolts fit 2-3/8" (60mm) or 2-3/4" (70mm) backsets.
- Graded Best in Residential Security, Durability, and Finish
Finish
Matte Black
Function
Dummy/Inactive
Design
Addison
Series
F Series
Color
Flat Black Coated
Color Code
622/US19/MTBK
Mount
Sectional
Handle Style
ADD-Addison
Finish Description
Black
Rose/Escutcheon Trim
Square Escutcheon
Product Type
Handleset
Grade
ANSI/BHMA Grade 1
Handing
Reversible
Projection
3.1875
Door Thickness
1-5/8" to 1-7/8"
Bore Size
2.1250
Included Components
Outside Inactive Grip; Dummy Deadbolt; (2) Cut Keys
Product Material
Zinc
Box Length
16.2500
Box Width
7.9700
Box Height
3.9000
Application
Residential
Warranty
Lifetime limited mechanical and finish warranty
ADA Compliant
No
Finish Family
Black
Standards
ANSI/BHMA A156.36-2016; ANSI/BHMA A156.40-2015
Function Family
Dummy
Features
Door Frame Reinforcer With 3" Screws; Adjustable Throughbolt can Move Up and Down 1-1/2" to Fit a Variety of Pre-Existing Holes; Pair With An F94 for a Complete Inactive Handleset
Manufacturer Parent
Allegion
Inside Trim Function
F94 Inside Trim
Box Dimensions (L x W x H)
3.9x7.97x16.25"
Sub-Series
F92-ADD
Door Cross Bore
2.125 Inch
Collection
Addison
Package Height
3.9"
Package Length
16.25"
Package Width
7.97"
Item Weight
3 lbs
Dimension
18-1/8" Height x 3" Width x 3-3/16" Projection
Material
Zinc
Manufacturer Warranty
Limited Lifetime Mechanical and Finish Warranty
Door Range
1-5/8" to 1-3/4"
Hazardous Material
No
Cross Bore Size
2-1/8" Bore
Finish code
622
No of inners
1
Product Overview

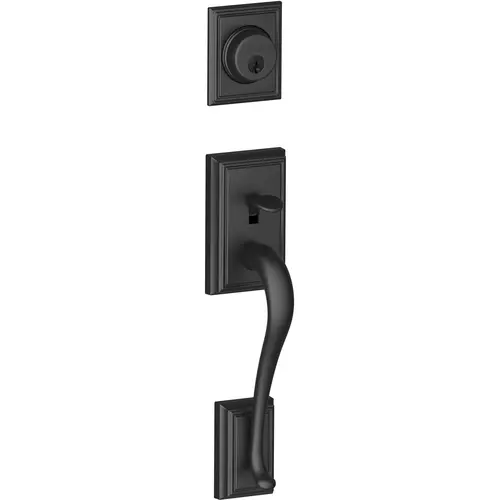

The Schlage Addison Exterior Inactive Handleset Grip with Exterior Inactive Deadbolt in Matte Black includes an exterior entrance handleset and inactive cylinder, and is perfect for use as a decorative door pull on a pair of non-latching doors. The Addison Handleset's distinguished look incorporates subtle details without losing its classic simplicity. The striking appearance of the Matte Black finish creates an elegant look that's sure to be noticed in any style setting. Plus, it's been designed and tested with strength and durability in mind.
