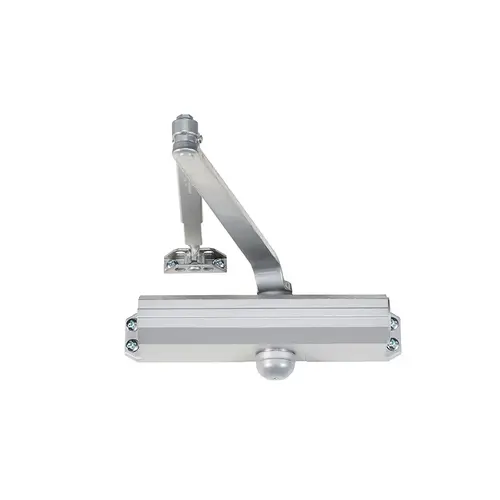

Sargent 1131-RU EN Surface Door Closer, Regular, Parallel, Top Jamb Mount, Adjustable Size 1-4, Aluminum
Item #: 1131-RU EN by Sargent
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Full rack and pinion
- High strength cast aluminum case
- Tri-packed for versatile mounting: standard, inverted or parallel
- Arm leverage adjustment
- One piece spindle heat treated for high strength
- Separate key controlled regulating valves for door closing and latching speed
- Wood and machine screws provided as standard
- Three choices of finishes: EN for Aluminum Enamel, EB for bronze enamel to match 10B, EAB for brass enamel
Finish
Aluminum Painted
Series
1131 Series
Color
Aluminum Painted
Cover
No
Type
Surface
Package Qty
1
Hold Open
Without Hold Open
Mounting Location
Push or Pull Side
Color Code
689/US28
Mounting Style
Tri Mount
Closer Size
Adj. 1 to 4
Grade
ANSI/BHMA Grade 1
Spring Size
Adjustable 1-6
Function
Tri-Packed Non-Hold Open Arm
Mount
Push or Pull Side
Finish Description
Aluminum Painted
Product Type
Door Closer/Holder/Stop
ADA Approved
False
Application
Offices; Hotel Rooms; Assisted Living Facilities; Medium-Traffic; Commercial Applications
Hand
Non-Handed
Handing
Non-Handed
Warranty
25 Year
Mounting Type
Push or Pull Side
Door Thickness
2-1/4 Inch
Product Length
9-3/4 Inch
ADA Compliant
YES
Finish Family
Aluminum
Included Components
Parallel Arm Conversion Bracket; Mortise Nuts and Through Bolts
Closer Arm Construction
Forged Steel
Product Material
Cast Aluminum
Closer Cover
Plastic Cover
Standards
Grade 1 - ANSI A156.4; UL and cUL Listed
Closer Arm Type
Regular Parallel Arm
Function Family
Non Hold Open Door Closer
Fastener Type
Wood and Machine Screws Provided as Standard
Features
Full Rack and Pinion; One Piece Spindle Heat Treated for High Strength; Separate Key Controlled Regulating Valves for Door Closing and Latching Speed
Minimum Hold-Open
85°
Manufacturer Parent
Assa Abloy
Closer Hold-Open
false
Maximum Hold-Open
100°
Sub-Series
DC_Surface Mounted Closers_sargent_2
Door Size
1-3/4" x 7'
Maximum Door Opening
180°
TAA/BAA Compliant
Yes
Mount Type
Tri Pack
GSA Approved
No
Adjustable
True
Material
Aluminum
Interior/Exterior
Interior/Exterior
Hinge Type
Door Closer
Commercial/Residential
Commercial
UNSPSC
30171514
Lever/Pull Included
True
AbilityOne
No
Hex Key Dogging
False
Hardware Included
False
Door Handing
Non Handed
UL Listed
No
Package Quantity
1
Security Grade
ANSI Grade 1
MADE IN THE USA
No
Product Overview
1131 SeriesDoor Closers
Designed for medium-traffic, commercial applications, the 1131 Series Door Closer is a Grade 1 closer that fully adjusts for sizes 1–6 and easily retrofits on store front entry doors. Common applications also include offices, hotel rooms, and assisted living facilities.
Benefits:- Interchangeable for standard, top jamb and parallel arm applicatons
- Captivated valves help prevent vandalism
- Complies with ADA requirements
- Reversible "Non-handed"
- Full rack and pinion
- High strength cast aluminum case
- Tri-packed for versatile mounting, inverted or parallel
- Arm leverage adjustment
- Heat treated high tensile springs
- One piece spindle heat treated for high strength
- Model available with spring adjustment
- Separate key controlled regulating valves for door closing and latching speed
- Two choices of finishes: EN for Aluminum Enamel, EB for Bronze Enamel to match 10B
- Valves are captivated to prohibit vandalism
- Adjustable backcheck valve is standard
- UL and ULC listed
- Typical uses hotel/motel guest rooms, assisted living centers, public housing, store fronts, office buildings
- Shall meet ANSI Grade 1 A156.4 requirements
- 15 year warranty
- Parallel Arm Conversion bracket included
- Mortise nuts and through bolts included
- Auxiliary door stop required
- Optional full cover avail
- Wood and machine screws provided as standard
