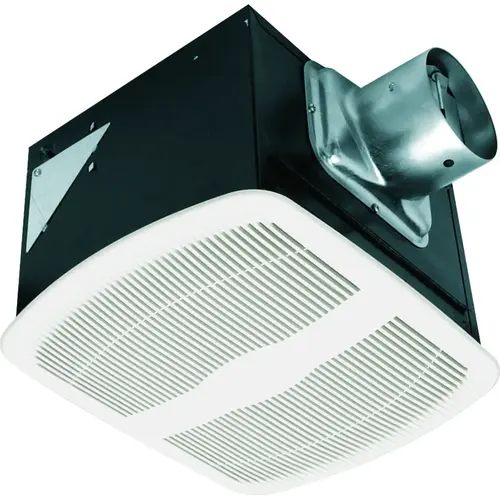

Air King AK110LS AKLS Series Exhaust Fan, 9-3/8 in L, 10-7/8 in W, 0.3 A, 115/120 V, 100 cfm Air, Metal
Item #: AK110LS by AIR KING AMERICA
UPC #: 083162211217
In Stock $179.81 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- White, polymeric grill secured in place with torsion springs, easily removed if necessary
- Blower wheel, balanced polymeric dual inlet blower wheel 5-13/32 in Dia x 4 in D, 30 paddles, secured in place using 8M hex nut
- Motor enclosed 4-pole electronically balanced permanently split capacitor motor (PSC), life time lubrication, suitable for continuous operation
- Duct collar plastic collar for 4 in duct connection, comes complete with built in non-metallic back draft damper for quiet operation
- Ventilating are for bathrooms up to 110 sq-ft and for other rooms up to 135 sq-ft
- Electrical connections 1/2 in electrical knockouts provided
- Easy wiring access via either internal or external wiring compartment cover
- 4 in round duct connector with damper protects against backdrafts and ensures quiet operation
- Side access panel allows you to wire the fan from inside or outside the housing
Height
9.0"
Width
10-7/8"
Mounting Type
Hanger Bar
Frequency Rating
60 Hz
Current Rating
0.3 A
Length
9-3/8"
Wattage Rating
28.5 W
Nomenclature
AK110LS QUIET EXHAUST FAN
Material
Metal
Warranty
Limited
Air Flow Rate
100 CFM
Specifications:
Warranty: Limited
Includes: Blower Damper and Duct Collar Grill Hanger Bars for Mounting
Material: Metal
At the highest point the grill projects only 1/2 in down from the ceiling. The electronically balanced centrifugal blower wheel assures maximum ventilation with minimum sound. Install using the adjustable hanging brackets for 16 in centers. 4 in metal duct collar with back draft. Motors are suitable for continuous operation. UL listed over a tub or shower on a GFCI circuit. HVI2100 certified. Housing dimensions of 10-7/8 in W x 9-3/8 in D x 7-7/8 in H.
