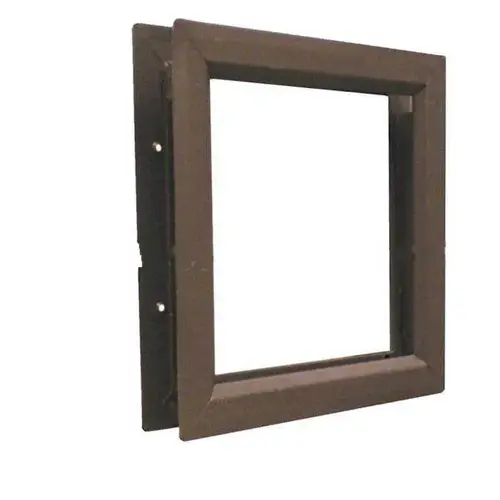

Air Louvers VSIG-24X60-B Model VSIG Slimline Vision Lite - 24" x 60", Mineral Bronze
Item #: VSIG-24X60-B by Air Louvers
See reviews See
reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How
Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Product Type
Door Lite/Louver
Finish Description
Mineral Bronze
Finish
Mineral Bronze
20 Gauge CRS frame. Low Profile Beveled Stock For Glass 1" Thick and Fire Doors up to 2-1/2" Thick. Mineral Bronze Powder Coat Finish
VSIGSlimline™ IG Vision Lite
VSIGSlimline™ IG Vision Lite
Low Profile Beveled IG Vision Lite for Fire Rated Doors. Glazing 5/16" to 1" Thickness. For 5/16"- 1-11/16" Glass
Product Details: Size:- Min Size: 3" x 3"
- Max Size: 60" x 104"
- 20 Gauge Cold Rolled Steel
- 1-1/4" trim with radius corners, mitered and welded. Continuous glass retainer, countersunk mounting holes in the bevel on non-corridor side.
- UL Listing: 1" - 3"
- WH-ETL Listing: 1-3/4"
- Mineral Bronze
- Gray, Black, Flat Black, White, Silver, Brass, Sand, AMS Beige, SC Beige
- UL listed and labeled to ANSI/UL 10B and ANSI/UL 10C when properly installed in rated and approved door. Ratings up to 3 hours can be achieved, depending on glazing used and maximum exposed area.
- Warnock Hersey listed and labeled upon request to NFPA 252, ANSI/UL 10B and ANSI/UL 10C for ratings up to 90 minutes.
