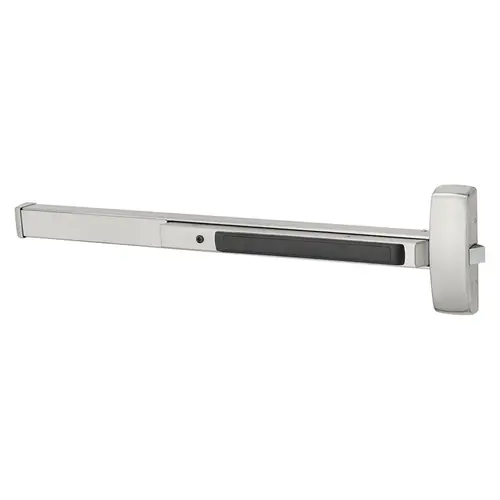

Sargent AL-8810F 32DClick To Copy Alarmed Extra Heavy Duty Rim Exit Device Exit Only for 33" to 36" x 7' Door Satin Stainless Steel Finish
Item #: AL-8810F 32D by Sargent
See reviewsSee reviews
In Stock
$1,968.60
/eachSAVE UP TO 196.86
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 23 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" specify thickness and order as a 31- prefix.
- Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door;G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door
Grade
Grade 1
Color
Satin Stainless Steel
Color Code
630/US32D
Door Thickness
1-3/4" to 2-1/4"
Door Width
33 In. to 36 In.
Device Length
36 In.
Fire Rated
No
Origin
USA
BAA Qualified
Yes
Package Height
6"
Package Length
38"
Package Volume
1710
Package Width
7.5"
ANSI Number
1
Device Type
Rim
Includes Trim
No
Mechanical Function
Exit Only
Minimum Stile Size
4-3/4"
Package Qty
1
Physical Appearance
Wide Stile Pushpad
Base Material
Stainless Steel
Door Material
Metal or Wood
Warranty
1 Year From Date of Purchase.
Aluminium Bottle Contents
Swinging
ProductType
Manual
Sub-Series
AL-8810-F-32D
Manufacturer Parent
Assa Abloy
Bolt Throw
3/4 Inch
Application
Single and Double Door with Mullion
Features
Single Point Rim Latching Device; Quiet Operation and Solid Security; 649 Standard Black Nylon Coated Strike; Through-Bolts and Mortise (Sex) Nuts
Device Trim ANSI Function
01
Device Centerline From Finished Floor
41 Inch
For Door Thickness
1-3/4 Inch
Device Rating
Panic Exit Hardware
Device Bar Projection
Pushbar Neutral: 3 Inch; Pushbar Depressed: 2-1/8 Inch
Center Case Dimensions
8-3/8 Inch x 2-5/8 Inch
Trim Style
EO
Stile Width
4-1/2 Inch
Standards
ANSI/BHMA A156.3 - Grade 1; UL305 Listed
Finish Family
Stainless Steel
ADA Compliant
No
Latch Type
Stainless Steel
Dogging Options
Hex Key Dogging
Series
8800 Pushpad
Product Type
Exit Device
Finish Description
Satin Stainless Steel
Stile
Wide Stile
Function
Alarm
Handing
Non-Handed
Length
3
Finish
Satin Stainless Steel
Product Overview
Rim Exit Device, Exit Only, 36", Alarmed, Satin Stainless Steel
The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.
The 8800 series is designed for standard width stile applications on wood and metal doors.
The 8800 Series is a reversible rim exit device that sets the industry standards for durability and reliability. It is part of Sargent's full line of exit devices.
