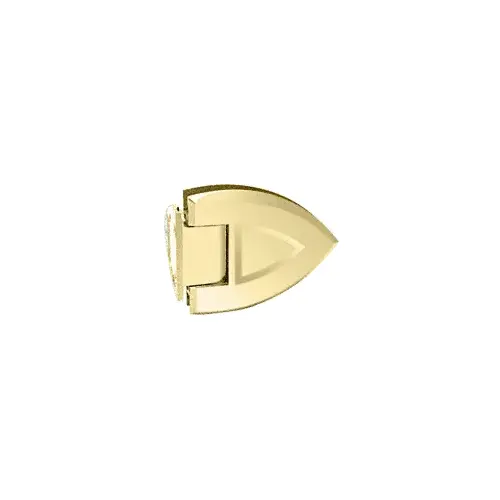

CRL CAT044BRBA All Brass Cathedral 044 Series Wall Mount Offset Back Plate Hinge
Item #: CAT044BRBA by CR Laurence
See reviews See
reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How
Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Unique Two-Tone Design
- Wall Mount Offset Back Plate (Allows Clean Sight Line From Shower Exterior)
Height
3-1/2" (89 mm)
Width
4-1/4" (108 mm)
Finish
Brass
The CRL Cathedral Series Hinge combines a unique two-tone accent design (for most models) with a positive hold cut-out and through-stud system. Cathedral offers the same internal mechanism as our popular Geneva Series, and contains a Reversible Pivot Pin for optional 5º tighter door closure. The "GENP1N" Custom Pivot Pin is available for "off-angle" installations.
Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 95 lbs. (43 kg) with a maximum door width of 34" (864 mm).
Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 140 lbs. (64 kg) with a maximum door width of 38" (965 mm).
SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Features: Most models have a unique two-tone design that provides design flexibility when attempting to match split finish color décors.
Construction: Solid Brass
Hinge Swings: 90º In and 90º Out
Closing Type: Self-Centering when within 15º of closed position.
Cut-Out and Hole Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 95 lbs. (43 kg) with a maximum door width of 34" (864 mm).
Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 140 lbs. (64 kg) with a maximum door width of 38" (965 mm).
