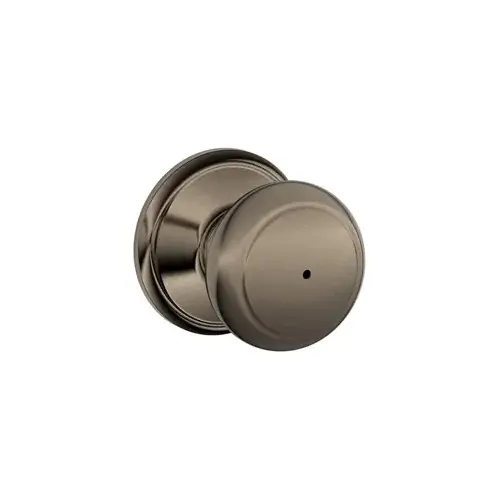

Schlage Residential F40 AND 620 F40AND620 16-080 10-027 Andover Privacy - Antique Pewter
Item #: F40 AND 620 by Schlage Residential
Brand: Schlage Residential
UPC #: 043156225415
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- For 1-3/8" to 1-3/4" Doors
- Privacy Locking - Ideal for Bedrooms and Bathrooms
- Easy 3-Step Installation, Only a Screwdriver Needed
- Applications: Residential single- and multi-family doors
- Certifications: ANSI A156.2, 1996, Series 4000 Grade 2
- Quality Materials and Construction for Exceptional Security
- Lifetime Mechanical & Finish Warranty
- Bed/Bath (Privacy) Function - Push Button Locking, Turning Inside Knob/Lever Releases Button
- Quality Finishes Coordinate with Plumbing and Lighting
- Certified Commercial Grade 2
- Graded Best in Residential Security, Durability, and Finish
- U.L. Listed: Locks for up to three-hour fire doors available
- Door thickness range: 1-3/8" to 1-3/4" (35mm-44mm) standard
- Backset: Universal latch standard, fits either 2-3/8" (60mm) or 2-3/4" (70mm) backsets. 5" (127mm) backset available
Design
Andover Knob
Backset
2-3/8 Inch or 2-3/4 Inch
Series
F Series
Finish
Antique Pewter
Function
Privacy/Bed/Bath
Strike
Full Lip 2-1/4 Inch, Radius Corner
Color
Satin Nickel Plated Blackened Satin Relieved CC
Color Code
620/US15A
Grade
ANSI/BHMA Grade 2
Finish Description
Satin Nickel Blackened
Knob style
AND-Andover
Rose/Escutcheon Trim
Round Rose
Product Type
Cylindrical Lock
Handing
Reversible
Projection
2.3125
Door Thickness
1-3/8" to 1-3/4"
Knob Diameter
2.2500
Bore Size
2.1250
Included Components
Privacy Knobs; Roses; Latch; Strike; Mounting Hardware
Door Cross Bore
2.125 Inch
Product Material
Zinc
Box Length
8.1400
Box Width
4.3700
Box Height
3.0600
Application
Residential Bedrooms and Bathrooms
Warranty
Limited Lifetime Mechanical and Finish Warranty
ANSI Function
F76
Latch Type
Spring
Product Height
2-5/16 Inch
Strike Type
Radius Corner Full Lip
ADA Compliant
No
Finish Family
Antique Nickel
Strike Size
1-5/8 x 2-1/4 Inch
Standards
ANSI/BHMA A156.2-2011; ANSI/BHMA A156.39-2015; UL Listed
Door Preparation
Cross Bore 2-1/8"; Edge Bore 7/8"
Function Description
Outside knob/lever locked by pushbutton on inside knob/lever. Rotating inside knob/lever or closing door releases/unlocks button. Emergency release in outside knob/lever.
For Door Thickness
1-3/8" to 1-3/4"
Function Family
Privacy/Bedroom/Bathroom
Product Projection
2-3/4 Inch
Features
Easy Installation with Phillips Screwdriver; Self-Aligning Screw Holes make Installation Easy and Hassle Free; Universal Latches Slide Easily into Place and Require No Tools or Manual Adjustments
Bolt Throw
1/2 Inch
Manufacturer Parent
Allegion
Door Edge Bore
1 Inch
Box Dimensions (L x W x H)
3.06x4.37x8.14"
Knob Style Family
Round Flat Knob
Sub-Series
F40-AND
Collection
Andover
Package Height
3.06"
Package Length
8.14"
Package Width
4.37"
Item Weight
1.72 lbs
Dimension
2-3/16" Knob and 2-5/16" Projection with 2-3/4" Diameter Rose
Material
Zinc
Manufacturer Warranty
Limited Lifetime Mechanical and Finish Warranty
Rose/Escutcheon Design
Georgian Rose
Door Range
1-3/8" to 1-3/4"
Hazardous Material
No
Strike Dimension
2-1/4" x 1-5/8" x 1-1/8" Lip
Cross Bore Size
2-1/8" Bore
Finish code
620
Latch Faceplate Dimension
1" x 2-1/4"
Lever Knob Design
Andover Knob
No of inners
1
ANSI/BHMA Standards
F76
Keyed
No
Handle Type
Knob
Handle Design
Andover Knob
Electronic
No
Door Handing
Non-Handed
Standard Strike
10-027: Full Lip Radius Strike, 2-1/4" x 1-5/8"
Substrate Type
Zinc and Steel
Door Thickness Range
1-3/8" To 1-3/4"
Lock Type
Cylindrical
Standard Latch
16-080: Spring Latch, Dual Option (Round, Drive-in)
Rose Design
Alden Rose
Product Overview
The Schlage Andover Knob Bed and Bath Lock in Antique Pewter is perfect for use on bedroom and bathroom doors where locking is needed. The Andover knob is traditional but versatile, with delicate details and subtle hint of elegance. The sophisticated look of our Antique Pewter finish adds richness to any space. Plus, it's been designed and tested with strength and durability in mind.
