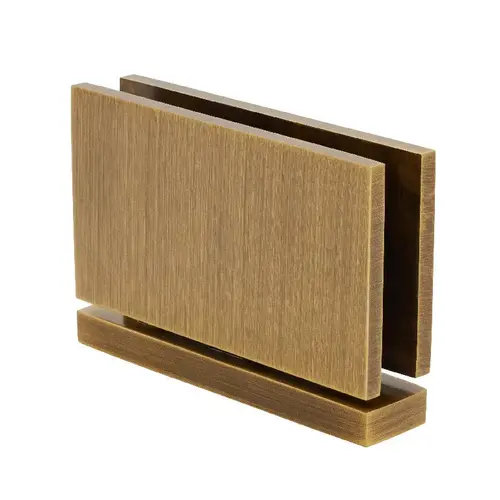

CRL CAR01ABR Cardiff Series Top Or Bottom Mount Hinge, Brass Material, Head And Sill Mount, 31" Maximum Door Width, Antique Brass Finish
Item #: CAR01ABR by CR Laurence
Brand: CRL
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Constructed from solid brass with an antique brass finish, providing a functional component for shower door hardware systems.
- Designed for 5/16" to 3/8" tempered safety glass, suitable for various shower enclosure configurations.
- Features a top and bottom mount design that allows for increased glass visibility and reduced glass cut-out requirements.
- Supports a maximum door weight of 100 lbs and a maximum door width of 31" when using two hinges for installation.
- Self-centering mechanism engages when the door is within 15 degrees of the closed position for consistent alignment.
- Compatible with floor and ceiling or floor and header mounting, and adaptable to the Deluxe Header System for shower enclosures.
- Includes necessary gaskets, screws, and glass fabrication dimensions to assist with the installation process.
Shipping Weight
1 lb (454g)
Finish
Antique Brass
Mounting Type
Head & Sill Mount
Material
Brass
Glazing Thickness
5/16 To 3/8
Maximum Door Width
31
Edge Profile
Square
Finish/Color
Antique Brass
Series
Cardiff
Self-Centering
Yes
Maximum Door Weight - 2 Hinges
100 Lbs.
Maximum Door Weight
100
Mounting Style
Head & Sill Mount
Opening Style
Pivot(floor)
Enclosure Type
Corner, Niche, Tailor Made Solutions
Design Style
Squared
Product Overview
The Antique Brass Cardiff Series Top or Bottom Mount Hinge is a pivot-style hinge designed for use with 5/16" to 3/8" tempered safety glass in shower enclosures. This hinge is constructed from solid brass and features a square edge profile. The top and bottom mount design allows for more glass visibility and reduces the number of cut-outs required compared to standard side-mount hinges. It is suitable for floor and ceiling or floor and header mounting configurations. The hinge is self-centering when within 15 degrees of the closed position and provides full rotation. It supports a maximum door weight of 100 lbs and a maximum door width of 31". The Cardiff Series is compatible with the Deluxe Header System for enclosures that do not reach the ceiling. The hinge includes gaskets, screws, and glass fabrication dimensions for installation. The antique brass finish provides a classic aesthetic for bathroom hardware.
