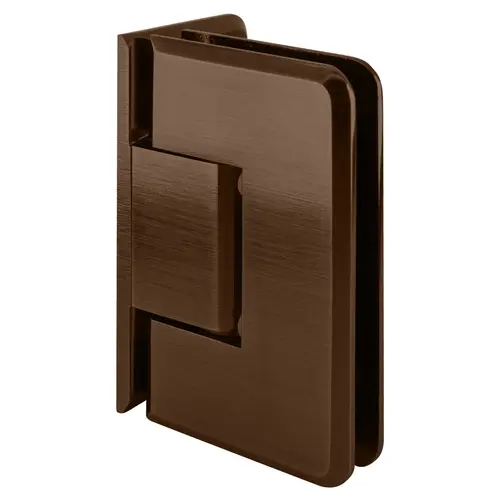

CRL C0L044ABRZ Antique Bronze Cologne 044 Series Wall Mount Offset Back Plate Hinge, Brass Material, 3/8" To 1/2" Glass, Antique Bronze Finish
Item #: C0L044ABRZ by CR Laurence
Brand: CRL
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Constructed from solid brass with an antique bronze finish, providing a functional component for shower door installations.
- Designed for 3/8" to 1/2" tempered safety glass, suitable for various residential or hotel shower enclosure configurations.
- Features a wall mount offset back plate design, compatible with corner, niche, and bathtub shower door applications.
- Includes a reversible pivot pin allowing for a 90-degree or 85-degree closure, with self-centering action within 15 degrees.
- Supports a maximum door weight of 100 lbs with 2 hinges or 130 lbs with 3 hinges, accommodating doors up to 34" wide.
- Equipped with beveled edges and radius corners, offering a clean aesthetic for glass shower door hardware setups.
- Supplied with necessary gaskets, screws, and glass fabrication dimensions, with a maximum clamping screw torque of 60 lbf.in.
Shipping Weight
1 lb (454g)
Finish
Antique Bronze
Back Plate
Offset
Glazing Thickness
3/8 to 1/2
Edge Profile
Beveled
Adjustable
No
Finish/Color
Antique Bronze
Series
Cologne
Maximum Door Width - 1/2 Glass
32"
Self-Centering
Yes
Maximum Door Width - 3/8 Glass
34"
5 Degree Pre-Set
No
Maximum Door Weight - 3 Hinges
130 Lbs.
Maximum Door Weight - 2 Hinges
100 Lbs.
Mounting Type
Wall Mount
Material
Brass
Mounting Style
Wall mount
Maximum Door Weight - 2 Hinges
100 lbs. (45.4 kg)
Maximum Door Weight - 3 Hinges
130 lbs. (59 kg)
Maximum Clamping Screw Torque
60 lbf.in (677.9 cN.m)
Opening Style
Swing(side)
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Design Style
Beveled
Product Overview
The Antique Bronze Cologne 044 Series Wall Mount Offset Back Plate Hinge is a wall-mounted hinge designed for supporting glass shower doors. Constructed from solid brass with an antique bronze finish, this hinge features beveled edges and radius corners. It is suitable for 3/8" to 1/2" tempered safety glass. The hinge provides a 90-degree swing in and 90-degree swing out, with a self-centering mechanism that engages when within 15 degrees of the closed position. It includes a reversible pivot pin, with the 90-degree side activated by default, and an 85-degree option available for tighter closure. When using two hinges with 3/8" glass, the maximum door weight capacity is 100 lbs with a maximum door width of 34". With 1/2" glass, two hinges support up to 100 lbs and a maximum door width of 32". Using three hinges increases the capacity to 130 lbs for both glass thicknesses, maintaining the same maximum door widths. The hinge requires a specific cut-out and includes gaskets, screws, and glass fabrication dimensions for installation. The maximum clamping screw torque is 60 lbf.in.
