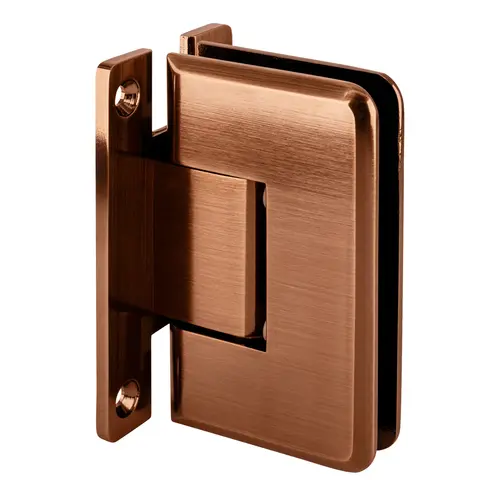

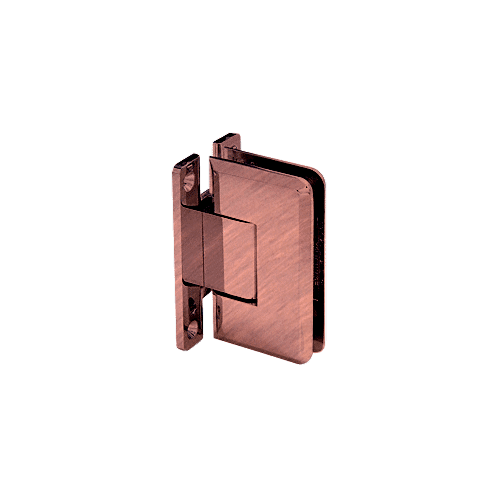

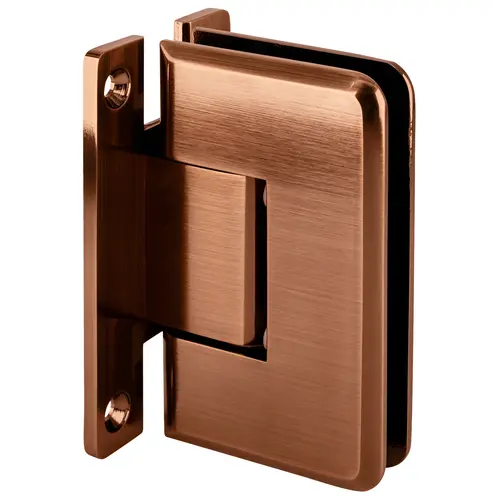

Antique Brushed Copper Cologne 037 Series Wall Mount 'H' Back Plate Hinge

Roll over image to zoom in

CRL C0L037ABC0 Antique Brushed Copper Cologne 037 Series Wall Mount 'H' Back Plate Hinge

Item #: C0L037ABC0 by CR Laurence

1 1 reviews

In Stock $141.42 /each

SAVE UP TO 14.14

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
  • Self-Centering with Reversible 5 Degree Pivot Pin
  • Wall Mount Full Back Plate Standard Model
  • Wall Mount 'H' Back Plate Standard Model
  • Use Monolithic Tempered Glass

Shipping Weight

1 lb (454g)

Width

2-1/4

Height

3-15/16

Finish

Antique Brushed Copper

Back Plate

'H'

Glazing Thickness

3/8 to 1/2

Maximum Door Width

36

Edge Profile

Beveled

Adjustable

No

Finish/Color

Antique Brushed Copper

Self-Centering

Yes

5 Degree Pre-Set

No

Maximum Door Weight - 3 Hinges (Pounds)

140

Maximum Door Weight - 2 Hinges (Pounds)

110

Mounting Type

Wall Mount

Material

Brass

Positive Close

No

Mounting Style

Wall mount

Height (Inches)

3-15/16

Max Dr Weight - 3 Hinges (Lbs)

140

Max Dr Weight - 2 Hinges (Lbs)

110

Width (Inches)

2-1/4

Maximum Door Weight - 2 Hinges

110 lbs. (49.9 kg)

Maximum Door Weight - 3 Hinges

140 lbs. (63.5 kg)

Maximum Clamping Screw Torque

60 lbf.in (677.9 cN.m)


CRL Cologne Hinges are similar to the popular Vienna Hinges, but with one change: They have radius corners and beveled edges to provide a sleek appearance. Cologne Hinges are the solution for wider, heavier doors that traditional hinges are not strong enough to support. Two strategically placed steel pins inside the hinge provide template options, and satisfy two schools of thought for mounting shower door hinges. For the safety of "mouse-ears" type cut-outs, the two steel pins should be left in place. This allows the Cologne Hinge to be used with its own CRL "mouse-ears" cut-out. On the other hand, to enable increased adjustability, the two pins can be removed. This allows the Cologne Hinge to fit its own CRL rectangular shaped, square cornered cut-out. In some cases, it will also fit competitive rectangular, square cornered cut-outs.
STANDARD REVERSIBLE PIVOT PIN: Each Cologne Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90º. The opposite side of the Pin is marked 85º. Standard Cologne Hinges come with the 90º side activated. Pre-Set Models come with the Pin pre-set for 85º (5º tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.
CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90º. If the standard 5º Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45º).
Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).
Using three hinges with 3/8" and 1/2" glass (10 and 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum width of 36" (914 mm).
SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90º In and 90º Out
Closing Type: Self-Centering when within 15º of closed position.
Cut-Out Required - Except C0L092 Which Requires Cut-Out for Door and Two Holes for Fixed Panel
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Custom finishes are available on request by contacting DK Hardware Sales Department.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.

.
