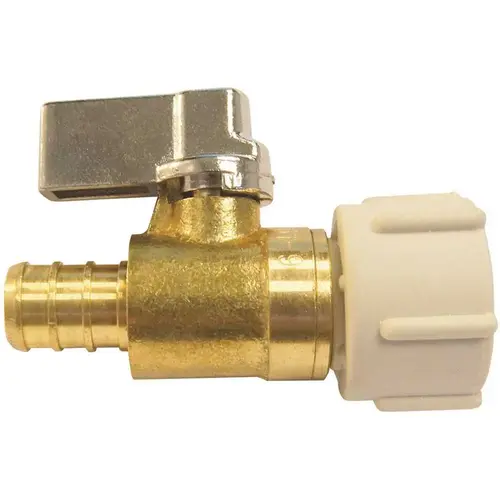

Apollo APXFF1212S 1/2 in. PEX Barb x 1/2 in. Female Pipe Thread Brass Swivel Ball Valve
Item #: APXFF1212S by Apollo
UPC #: 670750703102
$20.60 /each
Buying in bulk
Roll over image to zoom in
Apollo APXFF1212S 1/2 in. PEX Barb x 1/2 in. Female Pipe Thread Brass Swivel Ball Valve
Item #: APXFF1212S by Apollo
UPC #: 670750703102
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Material
Brass
Warranty
5 Years: Must be installed per published installation instructions
Pack Size
1
Manufacturer Warranty
5 Years: Must be installed per published installation instructions
Indoor/Outdoor
Indoor
Inlet Diameter (in.)
1/2
Maximum Pressure
200
Product Depth (in.)
1.39
Product Height (in.)
1.94
Product Length (in.)
4.41
Product Width (in.)
4.41
Valve Body Style
Ball
Valve Inlet Diameter (in.)
.5
Valve Outlet Diameter (in.)
.5
Connection
Ball Valve x FIP
Features
Corrosion Resistant, Lead Free, Removable
UNSPSC
40141607
The Apollo PEX Female Swivel Ball Valve is simple to install and provides flow control through an anti-stick and smooth operating quarter turn lever handle. Apollo PEX barb fittings are a key component of the most economical potable water piping systems. Also capable of integration into hydronic heating systems, Apollo PEX valves can be secured into place using copper crimps, stainless steel pinch clamps or stainless steel crimp sleeves (all sold separately). The Apollo PEX system is a comprehensive piping system comprised of brass fittings, poly alloy fittings, manifolds, valves, fasteners, tools and tubing designed for implementation in water delivery systems, simple or complex.
- Constructed of lead free dezincification resistant (DZR) brass for superior reliability and strength
- Can be used as a replacement valve for ApolloPEX manifolds
- Most economical piping system available
- Quarter-turn lever handle design for simple flow control
- Compatible with PEX pipe
- Meets UPC, IPC and cUPC standard
- Can secured in place using copper crimps, stainless steel pin. clamps or stainless steel crimp sleeves
- NSF Listed
- Barb x FIP connection for PEX plumbing systems
- Rated to 200°F and 200 psi
