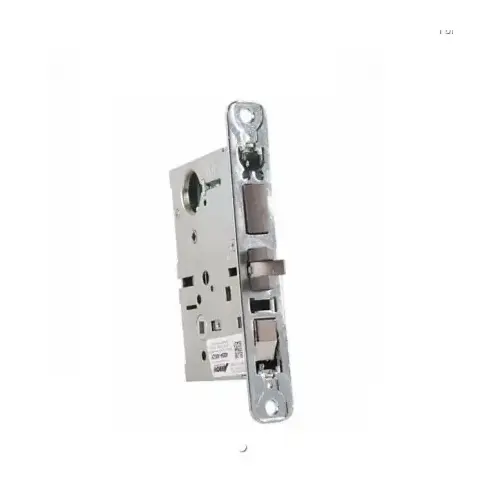

Mortise Lever Lock Body Only, Dormitory Function, Faceplate, Strike and Screw Pack Are NOT Included Satin Chrome

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Arrow BM19-26DClick To Copy Mortise Lever Lock Body Only, Dormitory Function, Faceplate, Strike and Screw Pack Are NOT Included Satin Chrome

Item #: BM19-26D by Arrow

See reviewsSee reviews
See reviews summary
In Stock

$267.40

/each
SAVE UP TO 26.74

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 32 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Finish

Satin Chrome

Grade

ANSI/BHMA Grade 1

Function

19-Dormitory

Finish Description

Satin Chrome

Lever Style

Lockbody

Product Type

Lock Part/Accessory

Series

BM Series

Strike Size

4-7/8" x 1-1/4"

Hub Size

5/16 Inch

Deadbolt Size

19/32" x 1-1/4"

Latch Size

1" x 5/8"

Deadbolt Type

One Piece Stainless Steel

Hub Material

Nickel Steel

Standards

ANSI/BHMA Certified A156.13; UL/ULC

Front Material

Heavy Gauge Steel

Case Dimensions

5-7/8" x 4" x 15/16"

Function Description

Deadlocking latch bolt by levers except when locked by push button in inside lever. Key in outside lever locks or unlocks outside lever and releases button. Closing door releases push button. Inside lever always free

Front Size

8" x 1-1/4" x 3/32"

Function Family

Dormitory

Strike Lip

1-1/8 Inch

Spacing

3-5/8 Inch

Features

Easily Reversible, Enabling the User to Reverse Hands Without Disassembling Lock Case; Throughbolted Trim Designs for Proper Alignment and Increased Security; Many Trim Designs to Complement Arrow Cylindrical Locks and Exit Device Trims

Application

Schools, Hospitals and Commercial Buildings

Backset

2-3/4 Inch

Warranty

5 year limited

Color Code

626/US26D

Door Thickness

1-3/4 inch

Latch Throw

3/4 Inch

Deadbolt Throw

1 Inch

ANSI Function

F13

Latch Type

Two Piece Mechanical with Anti-Friction Insert

Strike Type

ANSI Straight

ADA Compliant

YES

Finish Family

Satin Chrome

Included Components

(2) Nickel Silver Keys

Manufacturer Parent

Assa Abloy

Sub-Series

CL_Mortise_Locks_Arrow_154

Product Overview

Mortise Lever Lock Body Only, Dormitory Function, Faceplate, Strike and Screw Pack Are NOT Included
