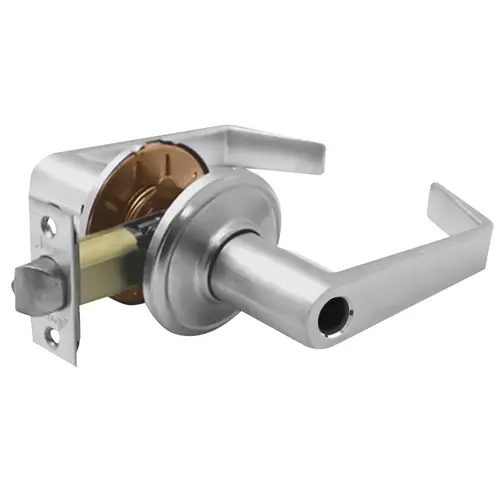

Arrow CL12-SC-26D-LC C Series Residential Lever Lock Satin Chrome
Item #: CL12-SC-26D-LC by Arrow
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Construction – Tubular chassis
- Backset – Universal latch is standard. Adjustable for both 2-3/8" (60mm) or 2-3/4" (70mm).
- Latch – Brass front. Supplied standard with 1" x 2-1/4" (25mm x 57mm) square corner, 1" x 2-1/4" radius corner and 1-1/8" x 2-1/4" (29mm x 57mm) square corner latch fronts. Available with drive-in latches.
- Strike – 1-5/8" x 2-1/4" (41mm x 57mm) full lip strike standard. Available with 1-1/8" x 2-3/4" (29mm x 70mm) “T” strike, or 1-1/4" x 4-7/8" (32mm x 124mm) ANSI strike.
- Door Thickness – Fits 1-3/8" to 1-3/4" (35mm-44mm) doors standard.
- Exposed Trim – Knobs are wrought brass. Levers are zinc based and are plated to match finish requirements.
Projection
2.5000
Finish
Satin Chrome
Grade
ANSI/BHMA Grade 2
Lever Length
4.2500
Backset
2-3/8 Inch or 2-3/4 Inch Adjustable, Square Corner
Color
Satin Chrome
Color Code
626/US26D
Function
12-Storeroom
Door Thickness
1-3/8" to 1-3/4"
Strike
Full Lip, 1-5/8 Inch x 2-1/4 Inch x Square Corner
Bore Size
2.1250
Cylinder Type
Less Cylinder
Origin
China
Finish Description
Satin Chrome
Package Height
2.75
Package Length
6.25
Package Volume
94.53125
Package Width
5.5
Latch Number
511
Strike Number
502
Lever Style
SC-Solar
Rose/Escutcheon Trim
Round Rose
Product Type
Cylindrical Lock
Series
CL Series
Warranty
5 Year Mechanical; 5 Year Finish
Rose Diameter
2-1/2 Inch
Strike Type
Full Lip Strike
ADA Compliant
YES
Finish Family
Satin Chrome
Strike Size
1-5/8" x 2-1/4"
Lever Projection
2-1/2 Inch
Door Cross Bore
2.125 Inch
Standards
ANSI A156.2 Series 4000 Grade 2
Function Family
Storeroom
Manufacturer Parent
Assa Abloy
Lever Length-Inches
4-1/4 Inch
Lever Style Family
Straight Return Lever
Lever Material
Zinc
Sub-Series
CL12-SC-26D-LC
Product Overview
C Series Tubular Lever Locks
The return of the Comet brings with it the exceptional value and quality required to meet the demands of the single and multi-family housing markets, as well as light commercial applications. Combining a variety of knob and lever designs, convenient installation and the Arrow benchmark for dependability, the C Series is perfect in almost any space.
Certification:
The C Series has been designed to meet the requirements of ANSI, A156.2, Series 4000, Grade 2 and ADA/Americans with Disabilities Act.
Features
- Construction- Tubular chassis.
- Backset- Universal latch is standard. Adjustable for both 2-3/8" (60mm) or 2-3/4" (70mm).
- Latch- Brass front. Supplied standard with 1" x 2-1/4" (25mm x 57mm) square corner, 1" x 2-1/4" radius corner and 1-1/8" x 2-1/4" (29mm x 57mm) square corner latch fronts. Available with drive-in latches.
- Strike- 1-5/8" x 2-1/4" (41mm x 57mm) full lip strike standard. Available with 1-1/8" x 2-3/4" (29mm x 70mm) “T” strike, or 1-1/4" x 4-7/8" (32mm x 124mm) ANSI strike.
- Door Thickness- Fits 1-3/8" to 1-3/4" (35mm-44mm) doors standard.
- Exposed Trim- Knobs are wrought brass. Levers are zinc based and are plated to match finish requirements.
- Mounting- Knobsets are supplied with exposed screws on inside rose. Leversets are supplied with concealed screws on inside rose.
- Cylinder- Solid brass, 6 pin tumbler, pinned 5. “A” keyway standard. Available in a variety of competitive manufacturers keyways. Supplied with 2 brass keys.
- Finishes- US3, US5, US26, US26D, US15.
- Packaging- Both knob and leversets are packed 1 per box, 20 per carton.
- Warranty- 5 year mechanical, 5 year finish.
