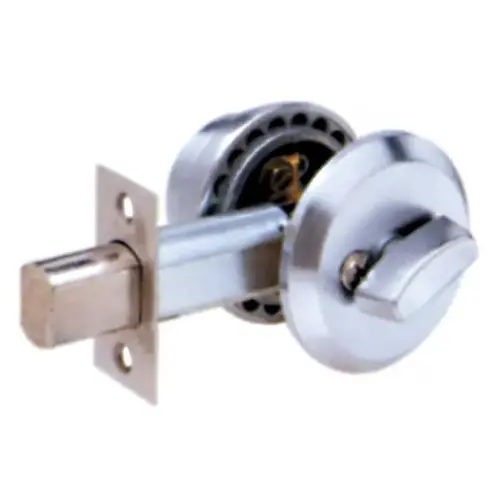

E Series Grade 2 Deadbolt

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Arrow E41-15-346-144-CS E Series Grade 2 Deadbolt

Item #: E41-15-346-144-CS by Arrow

See reviewsSee reviews
See reviews summary

$79.72

/each
SAVE UP TO 7.97
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Strike Size

2-3/4" x 1-1/8"

ANSI Function

41

Hand

Reversible

Grade

ANSI/BHMA Grade 2

Front Size

2-1/4" x 1-1/8"

Deadbolt Throw

1 Inch

Deadbolt Material

Solid Steel

Function Family

Cylinder With Turn Deadbolt

Standards

ANSI A156.5; UL; CUL Listed; BHMA Certified

Cylinder Material

Solid Brass

Door Thickness

1-3/8" to 1-3/4"

Features

Two-Piece Housing With Free Spinning Outer Ring to Prevent Wrenching; Concealed Mounting Screws Standard on Double Cylinder Functions; 3 Hour Fire Doors When Used in Conjunction With a Rated Primary Latching Device

Color Code

619/US15

Deadbolt Type

Pin Insert; Drive in Deadbolt

Backset

2-3/4 Inch

Included Components

(2) Brass Keys; (2) 1/4" Steel Through Bolts; Wood Frame

Warranty

1 year limited

Keyway

Schlage C

Function

41-Single Cylinder Deadbolt

Strike

Deadbolt, 1-1/8 Inch x 2-3/4 Inch, Square Corner

Cylinder Type

Conventional

Finish Description

Satin Nickel

Latch Number

144

Latch Type

Square Corner

Strike Number

346

ADA Compliant

No

Finish Family

Satin Nickel

Keyblank Grouping

ARRW-C-6-1

Rose/Escutcheon Trim

Round Rose

Keying Charges

CCAM

Cylinder Type Used

Conventional

Interior Lock Type

Thumbturn

Exterior Lock Type

Keyed

Product Type

Auxiliary Lock

Series

E Series

Manufacturer Parent

Assa Abloy

Latch Corner

Square

Sub-Series

E41-15-346-144-CS

Product Overview
E SeriesDeadbolts

Arrow E Series deadlocks are unsurpassed for value, quality and durability. Our tamper resistant rotating wrench-proof collar, steel deadbolt with hardened steel pin insert and concealed screws are security features that have made the E Series the most specified deadlock in its class.

Certification & Compliance:
  • ANSI A156.5, Auxiliary Locks, Grade 2
  • Underwriters Laboratories (UL and CUL) listed for use on 3 hour fire doors when used in conjunction with a rated primary latching device.
Specifications: Housing:
  • Two-piece housing, with free spinning outer ring to prevent wrenching. Concealed mounting screws standard on double cylinder functions.
Thru-bolting:
  • supplied with two 1/4" (6.35mm) steel thru-bolts.
Deadbolt:
  • 1" (25.40mm) throw, solid steel deadbolt with hardened, free spinning, steel pin insert.
Backset:
  • 2-3/8" (60.32mm)
  • 2-3/4" (69.85mm)
Deadbolt Fronts:
  • 2-1/4" (57.15mm) x 1" (25.40mm) standard for 2-3/8"
    (60.32mm) backset
  • 2-1/4" (57.15mm) x 1-1/8" (28.57mm) standard for 2-3/4" (69.85mm) backset.
  • Drive-in deadbolts are available.
Doors:
  • 1-3/8" (34.925mm) to 1-3/4" (44.45mm) thick standard.
Strikes:
  • Supplied standard with the #346 wood frame strike.
  • The #345 metal frame strike is optional.
Handing:
  • All functions are reversible.
Cylinder, Standard:
  • Solid brass, Arrow "A" keyway, drilled for 6 pins, pinned to 5. E41 and E42 low profile deadbolts are supplied with 5-pin cylinders.
  • Supplied with two brass keys. Available in Schlage CS keyway and other competitive keyways.
Cylinder Options:
  • Accepts 6 or 7 pin, small format, interchangeable cores. Supplied less cores. Will accept Best™ or Falcon™type cores.
Finishes: Bright Brass:
  • BHMA - 605
  • U.S. Equivalent - US3
  • Arrow Equivalent - 03
Satin Brass:
  • BHMA - 606
  • U.S. Equivalent - US4
  • Arrow Equivalent - 04
Antique Brass:
  • BHMA - 609
  • U.S. Equivalent - US5
  • Arrow Equivalent - 05A
Satin Bronze:
  • BHMA - 612
  • U.S. Equivalent - US10
  • Arrow Equivalent - 10
Dark Oxide Bronze, Oil Rubbed:
  • BHMA - 613
  • U.S. Equivalent - US10B
  • Arrow Equivalent - 10B
Nickel Plated:
  • BHMA - 619
  • U.S. Equivalent - US15
  • Arrow Equivalent - 15
Bright Chromium Plated:
  • BHMA - 625
  • U.S. Equivalent - US26
  • Arrow Equivalent - 26
Satin Chromium Plated:
  • BHMA - 626
  • U.S. Equivalent - US26D
  • Arrow Equivalent - 26D
