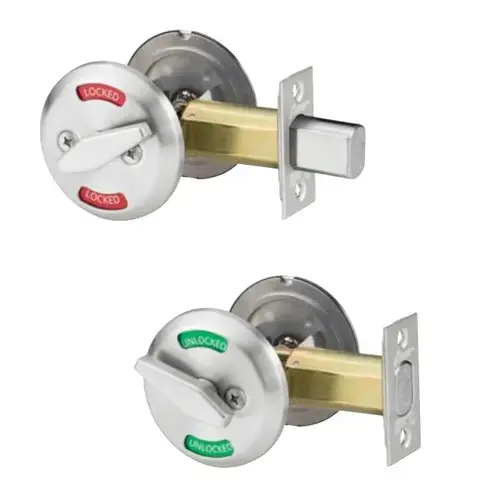

E Series Grade 2 Deadbolt

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Arrow E50-26-346-141 E Series Grade 2 Deadbolt

Item #: E50-26-346-141 by Arrow

See reviewsSee reviews
See reviews summary

$79.72

/each
SAVE UP TO 7.97
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Strike Size

2-3/4" x 1-1/8"

ANSI Function

50

Hand

Non-Handed

Grade

ANSI/BHMA Grade 2

Front Size

2-1/4" x 1"

Standards

ANSI A156.5; UL Listed; BHMA Certified

Cylinder Material

Solid Brass

Door Thickness

1-3/8" to 1-3/4"

Features

Furnished With Concealed Mounting Screws; Ic Prep Available

Color Code

625/US26

Strike Type

Square Corner

Backset

2-3/8 Inch, 1 x 2-1/4 Inch, Square Corner

Warranty

1 year limited

Included Components

(2) 1/4" Steel Through Bolts

Interior Lock Type

Thumbturn

Strike Number

346

Exterior Lock Type

Occupancy Indicator

Manufacturer Parent

Assa Abloy

Latch Number

141

Finish Description

Bright Polished Chrome

Function

50-Occupancy Indicator

Latch Type

Square Corner

Sub-Series

CL_Deadbolt_Locks_arrow_52

ADA Compliant

No

Deadbolt Throw

1 Inch

Strike

Deadbolt, 1-1/8 Inch x 2-3/4 Inch, Square Corner

Deadbolt Material

Solid Steel

Function Family

Occupancy Indicator Deadbolt

Product Type

Auxiliary Lock

Rose/Escutcheon Trim

Round Rose

Latch Corner

Square

Series

E Series

Finish Family

Polished Chrome

Product Overview
E SeriesDeadbolts

Arrow E Series deadlocks are unsurpassed for value, quality and durability. Our tamper resistant rotating wrench-proof collar, steel deadbolt with hardened steel pin insert and concealed screws are security features that have made the E Series the most specified deadlock in its class.

Certification & Compliance:
  • ANSI A156.5, Auxiliary Locks, Grade 2
  • Underwriters Laboratories (UL and CUL) listed for use on 3 hour fire doors when used in conjunction with a rated primary latching device.
Specifications: Housing:
  • Two-piece housing, with free spinning outer ring to prevent wrenching. Concealed mounting screws standard on double cylinder functions.
Thru-bolting:
  • supplied with two 1/4" (6.35mm) steel thru-bolts.
Deadbolt:
  • 1" (25.40mm) throw, solid steel deadbolt with hardened, free spinning, steel pin insert.
Backset:
  • 2-3/8" (60.32mm)
  • 2-3/4" (69.85mm)
Deadbolt Fronts:
  • 2-1/4" (57.15mm) x 1" (25.40mm) standard for 2-3/8"
    (60.32mm) backset
  • 2-1/4" (57.15mm) x 1-1/8" (28.57mm) standard for 2-3/4" (69.85mm) backset.
  • Drive-in deadbolts are available.
Doors:
  • 1-3/8" (34.925mm) to 1-3/4" (44.45mm) thick standard.
Strikes:
  • Supplied standard with the #346 wood frame strike.
  • The #345 metal frame strike is optional.
Handing:
  • All functions are reversible.
Cylinder, Standard:
  • Solid brass, Arrow "A" keyway, drilled for 6 pins, pinned to 5. E41 and E42 low profile deadbolts are supplied with 5-pin cylinders.
  • Supplied with two brass keys. Available in Schlage CS keyway and other competitive keyways.
Cylinder Options:
  • Accepts 6 or 7 pin, small format, interchangeable cores. Supplied less cores. Will accept Best™ or Falcon™type cores.
Finishes: Bright Brass:
  • BHMA - 605
  • U.S. Equivalent - US3
  • Arrow Equivalent - 03
Satin Brass:
  • BHMA - 606
  • U.S. Equivalent - US4
  • Arrow Equivalent - 04
Antique Brass:
  • BHMA - 609
  • U.S. Equivalent - US5
  • Arrow Equivalent - 05A
Satin Bronze:
  • BHMA - 612
  • U.S. Equivalent - US10
  • Arrow Equivalent - 10
Dark Oxide Bronze, Oil Rubbed:
  • BHMA - 613
  • U.S. Equivalent - US10B
  • Arrow Equivalent - 10B
Nickel Plated:
  • BHMA - 619
  • U.S. Equivalent - US15
  • Arrow Equivalent - 15
Bright Chromium Plated:
  • BHMA - 625
  • U.S. Equivalent - US26
  • Arrow Equivalent - 26
Satin Chromium Plated:
  • BHMA - 626
  • U.S. Equivalent - US26D
  • Arrow Equivalent - 26D
