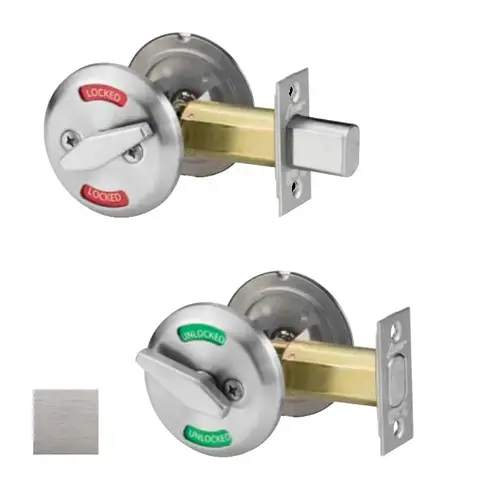

Arrow E50-26D-346-144 E Series Grade 2 Deadbolt Satin Chrome

E SeriesDeadbolts

Arrow E Series deadlocks are unsurpassed for value, quality and durability. Our tamper resistant rotating wrench-proof collar, steel deadbolt with hardened steel pin insert and concealed screws are security features that have made the E Series the most specified deadlock in its class.

Certification & Compliance:

• ANSI A156.5, Auxiliary Locks, Grade 2

• Underwriters Laboratories (UL and CUL) listed for use on 3 hour fire doors when used in conjunction with a rated primary latching device.

Specifications: Housing:

• Two-piece housing, with free spinning outer ring to prevent wrenching. Concealed mounting screws standard on double cylinder functions.

Thru-bolting:

• supplied with two 1/4" (6.35mm) steel thru-bolts.

Deadbolt:

• 1" (25.40mm) throw, solid steel deadbolt with hardened, free spinning, steel pin insert.

Backset:

• 2-3/8" (60.32mm)
• 2-3/4" (69.85mm)

Deadbolt Fronts:

• 2-1/4" (57.15mm) x 1" (25.40mm) standard for 2-3/8"
  (60.32mm) backset
• 2-1/4" (57.15mm) x 1-1/8" (28.57mm) standard for 2-3/4" (69.85mm) backset.
• Drive-in deadbolts are available.

Doors:

• 1-3/8" (34.925mm) to 1-3/4" (44.45mm) thick standard.

Strikes:

• Supplied standard with the #346 wood frame strike.
• The #345 metal frame strike is optional.

Handing:

• All functions are reversible.

Cylinder, Standard:

• Solid brass, Arrow "A" keyway, drilled for 6 pins, pinned to 5. E41 and E42 low profile deadbolts are supplied with 5-pin cylinders.
• Supplied with two brass keys. Available in Schlage CS keyway and other competitive keyways.

Cylinder Options:

• Accepts 6 or 7 pin, small format, interchangeable cores. Supplied less cores. Will accept Best™ or Falcon™type cores.

Finishes: Bright Brass:

• BHMA - 605
• U.S. Equivalent - US3
• Arrow Equivalent - 03

Satin Brass:

• BHMA - 606
• U.S. Equivalent - US4
• Arrow Equivalent - 04

Antique Brass:

• BHMA - 609
• U.S. Equivalent - US5
• Arrow Equivalent - 05A

Satin Bronze:

• BHMA - 612
• U.S. Equivalent - US10
• Arrow Equivalent - 10

Dark Oxide Bronze, Oil Rubbed:

• BHMA - 613
• U.S. Equivalent - US10B
• Arrow Equivalent - 10B

Nickel Plated:

• BHMA - 619
• U.S. Equivalent - US15
• Arrow Equivalent - 15

Bright Chromium Plated:

• BHMA - 625
• U.S. Equivalent - US26
• Arrow Equivalent - 26

Satin Chromium Plated:

• BHMA - 626
• U.S. Equivalent - US26D
• Arrow Equivalent - 26D
