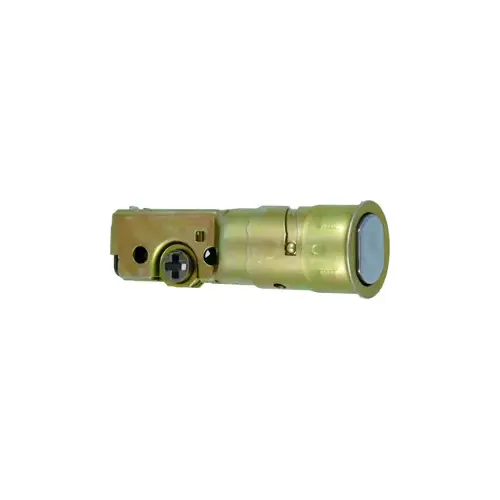

Arrow Lock DBX-L18 Adjustable Drive In Bolt for DBX

Item #: DBX-L18 by Arrow Lock

See reviews See reviews

In Stock $20.75 /each

SAVE UP TO 2.07

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment

Alternate Part Number-1

168616

ARROW DBX Series Deadbolt

The DBX Series deadbolt is a professional replacement Grade 2 commercial deadbolt. The flexible design offers an adjustable backset in an attractive low profile package. The DBX is ideal for commercial common areas and residential applications.

CERTIFICATION

  • ANSI/BHMA: Certified ANSI/BHMA A156.36 Auxiliary Locks, Grade 2.
  • UL/cUL: All locks listed for 3-hour A label single door, 4' x 8'.



    • SPECIFICATIONS

  • Door Thickness:
    • Standard cylinder unit – 1-3/8" to 1-3/4" (35mm to 44mm).
    • SFIC unit – 1-3/8" to 2" (35mm to 51mm).
  • Backset: Adjustable 2-3/8" (60mm) to 2-3/4" (70mm).
  • Latch Bolt: 1" (25mm) throw steel deadbolt with hardened, free spinning, steel pin insert.
  • Bolt Front: 2-1/4" (57mm) x 1" (25mm). Plastic spacer supplied for 1-1/8" (29mm) mortise.
  • Steel Strike: 1-1/16" (27mm) x 2-3/4" (70mm) x 0.05" (0.13" (3mm) thick with wood frame reinforcer).
  • Cylinder and Keys: Solid brass 6 pin cylinder. Two brass keys furnished standard. Arrow “A” or Schlage “C” keyway available. Optional SFIC lock prep available (less core).
  • Packaging: 12 per case.
  • Warranty: 1 Year.

    • FINISHES

    » 605/US3 - Bright Brass

    » 613E/US10BE - Dark Oxidized Satin Bronze, Electroplated

    » 630/US32D - Satin Stainless Steel
