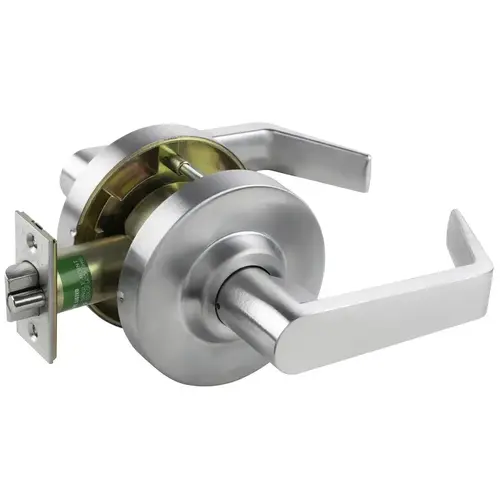

Passage Cylindrical SR Lever Lock Satin Chrome Finish

Roll over image to zoom in

Arrow MLX01-SR-26DClick To Copy Passage Cylindrical SR Lever Lock Satin Chrome Finish

Item #: MLX01-SR-26D by Arrow

See reviewsSee reviews
In Stock

$104.58

/each
SAVE UP TO 10.46

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 146 units available
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Features
  • Door Preparation – Requires standard 2-1/8" (53.97mm) bore through door.
  • Backset – 2-3/4" (69.85mm)
  • Door Thickness – Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
  • Latch – Stainless Steel 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions
  • Latch Front – 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
  • Exposed Trim – MLX Levers are pressure cast zinc measuring 4-3/4" (120.65mm) in length. MLX Roses are wrought brass 3-11/32" (84.8mm) diameter. Total projection from face of door is 2-17/32" (64.5mm).
  • Freewheeling Lever
  • Warranty – Ten Year Warranty
  • Handing – Non-handed
  • Packaging – 6 per case
  • Strike – 4-7/8" ANSI (123.83mm)
  • Cylinder – Solid brass 6 pin, Arrow AR and Schlage CS Keyway, keyed different
  • Keys – 2 brass keys

Color

Satin Chrome

Color Code

626/US26D

Fire Rated

3 Hours {A}

Origin

South Korea

BAA Qualified

No

Package Height

3.875

Package Length

7.5

Package Volume

199.8046875

Package Width

6.875

Grade

ANSI/BHMA Grade 2

Application

Commercial

Backset

2-3/4 Inch

Warranty

10 Year

Function

01-Passage

Handle Type

Lever

Rose Diameter

3-11/32 Inch

Strike

ANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner

Latch Throw

1/2 Inch

Finish Description

Satin Chrome

ANSI Function

F75

Latch Number

R23

Latch Type

Spring Latch

Strike Number

306

Strike Type

ANSI Strike

ADA Compliant

YES

Finish Family

Satin Chrome

Lever Style

SR-Sierra

Strike Size

1-1/4" x 4-7/8"

Rose/Escutcheon Trim

Round Rose

Door Cross Bore

2.125 Inch

Standards

ANSI/BHMA A156.2; UL and CUL Listed

Function Description

Latch retracted by knobs/levers at all times

Front Size

1-1/8 Inch

Function Family

Passage/Hall/Closet

Strike Lip

1-1/4 Inch

Product Projection

2-17/32 Inch

Trim Material

Brass (Rose); Pressure Cast Zinc (Lever)

Features

Guarded Latchbolt on All Locking Functions

Product Type

Cylindrical Lock

Series

MLX Series

Manufacturer Parent

Assa Abloy

Lever Length-Inches

4.75 Inch

Latch Corner

Square

Latchbolt Size

1 Inch

Knob/Lever Size

4-3/4 Inch

Latch Bolt Material

Stainless Steel

Lever Style Family

Straight Return Lever

Sub-Series

Arrow-MLX01-SR

Product Overview

Grade 2 Cylindrical Latch, Passage Function, Non-keyed, Sierra Lever, 3-11/32" Rose Diameter, Removable Thru-Bolts, Satin Chrome Finish, Non-Handed

The MLX Series is a robust Grade 2 lockset featuring a Free Wheeling Lever for abuse resistance, two screw lockset install for quick installation and a 10 Year Mechanical Warranty. The perfect solution for replacing or upgrading lockets in commercial applications.

The MLX Series is the perfect solution for replacing or upgrading lockets in commercial applications.

The MLX Series is a robust Grade 2 lockset featuring a FreeWheeling Lever for abuse resistance, two screw lockset install for quick installation and a 10 Year Mechanical Warranty.
