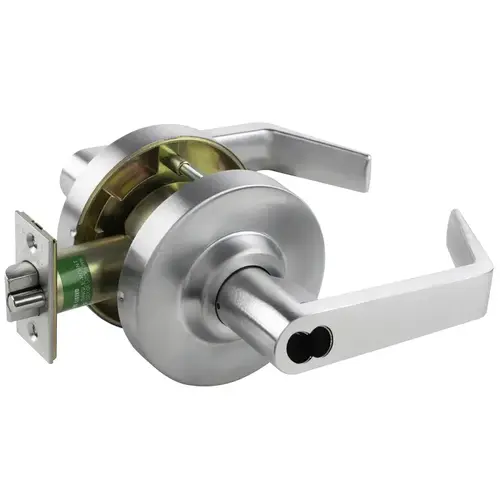

Arrow MLX81SR26DIC MLX Series Cylindrical Lever Locks Satin Chrome
Item #: MLX81SR26DIC by Arrow
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Door Preparation – Requires standard 2-1/8" (53.97mm) bore through door.
- Backset – 2-3/4" (69.85mm)
- Door Thickness – Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
- Latch – Stainless Steel 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions
- Latch Front – 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
- Exposed Trim – MLX Levers are pressure cast zinc measuring 4-3/4" (120.65mm) in length. MLX Roses are wrought brass 3-11/32" (84.8mm) diameter. Total projection from face of door is 2-17/32" (64.5mm).
- Freewheeling Lever
- Warranty – Ten Year Warranty
- Handing – Non-handed
- Packaging – 6 per case
- Strike – 4-7/8" ANSI (123.83mm)
- Cylinder – Solid brass 6 pin, Arrow AR and Schlage CS Keyway, keyed different
- Keys – 2 brass keys
Color
Satin Chrome
Color Code
626/US26D
Fire Rated
3 Hours {A}
Origin
South Korea
BAA Qualified
No
Package Height
3.875
Package Length
7.5
Package Volume
199.8046875
Package Width
6.875
Strike Size
1-1/4" x 4-7/8"
Strike Number
306
Manufacturer Parent
Assa Abloy
Knob/Lever Size
4-3/4 Inch
Latch Number
R21
Finish Description
Satin Chrome
Latch Throw
1/2 Inch
Function
81-Entrance/Office
Latch Type
Deadlatch
Grade
ANSI/BHMA Grade 2
Sub-Series
Arrow-MLX81-SR-IC
Lever Style Family
Straight Return Lever
ADA Compliant
YES
Front Size
1-1/8 Inch
Latch Bolt Material
Stainless Steel
Cylinder Type
SFIC Less Core-Small Format Prep
Lever Length-Inches
4.75 Inch
Handle Type
Lever
Door Cross Bore
2.125 Inch
Latchbolt Size
1 Inch
Strike
ANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner
Application
Commercial
Trim Material
Brass (Rose); Pressure Cast Zinc (Lever)
Function Family
Entry/Entrance/Office
Standards
ANSI/BHMA A156.2; UL and CUL Listed
Rose Diameter
3-11/32 Inch
Cylinder Material
Solid Brass
Lever Style
SR-Sierra
Product Type
Cylindrical Lock
Rose/Escutcheon Trim
Round Rose
Product Projection
2-17/32 Inch
Features
Guarded Latchbolt on All Locking Functions
Strike Type
ANSI Strike
Latch Corner
Square
Backset
2-3/4 Inch
Warranty
10 Year
Series
MLX Series
Cylinder Type Used
Small Format Interchangeable Core
Strike Lip
1-1/4 Inch
Finish Family
Satin Chrome
Product Overview
Grade 2 Cylindrical Lock, Entrance Function, SFIC Prep Less Core, Sierra Lever, 3-11/32" Rose Diameter, Removable Thru-Bolts, Accepts 6- or 7-Pin SFIC Cylinder, Satin Chrome Finish, Non-Handed
The MLX Series is a robust Grade 2 lockset featuring a Free Wheeling Lever for abuse resistance, two screw lockset install for quick installation and a 10 Year Mechanical Warranty. The perfect solution for replacing or upgrading lockets in commercial applications.
The MLX Series is the perfect solution for replacing or upgrading lockets in commercial applications.
The MLX Series is a robust Grade 2 lockset featuring a FreeWheeling Lever for abuse resistance, two screw lockset install for quick installation and a 10 Year Mechanical Warranty.
