Features
- Construction – Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (53.97mm) bore through door.
- Backset – 2-3/8" (60.31mm) or 2-3/4" (69.85mm).
- Door Thickness – Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
- Latch – Brass 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions.
- Latch Front – 1" x 2-1/4" (25.40mm x 57.15mm) for 2-3/8" backset (60.32.mm) or 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
- Exposed Trim – RK Roses are wrought brass 2-1/2" (63.5mm) diameter. Total projection from face of door is 2-3/4" (69.85mm).
- Strike – 4-7/8" ANSI (123.83mm), 2-3/4" (69.85mm) T strike, or 2-1/4" (57.15mm) full lip strike.
- Cylinder – Solid brass 6 pin. Arrow "A" keyway standard. Available in Schlage CS keyway and other competitive keyways.
- Keys – 2 brass keys.
- Handing – Non-handed.
- Thru-bolts – Removable thru-bolts standard on RL Series.
- Packaging– 10 per case.
- Warranty – Five Year Mechanical Warranty
Color
Satin Brass
Color Code
606/US4
Fire Rated
3 Hours {A}
Origin
Taiwan
Package Height
3.25
Package Length
7.875
Package Volume
92.77734375
Package Width
3.625
Finish
606 - Satin Brass
Door Handing
Non-Handed
Latch Throw
1/2"
Grade
Grade 2
Keyed
No
Handle Type
Knob
Lock Type
Cylindrical
Fasteners
Wood and Machine Screws
Door Thickness Range
1-3/8" To 1-3/4"
ANSI/BHMA Standards
F76A
Latch Faceplate
1" x 2-1/4"
Standard Strike
R60 T-Strike, 2-3/4" x 1-1/8"
Standard Latch
R72 Springlatch; 2-3/8" Backset
Product Overview

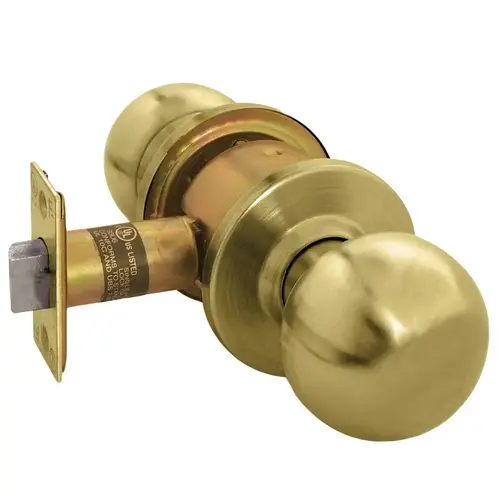

Grade 2 Privacy Cylindrical Lock, Ball Knob, Non-Keyed, Satin Brass Finish, Non-handed
The RK Series has been enhanced to offer a wide variety of finishes and functions. The RK Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.
The Arrow RK Series offers a wide variety of finishes and functions.
The RK Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.
