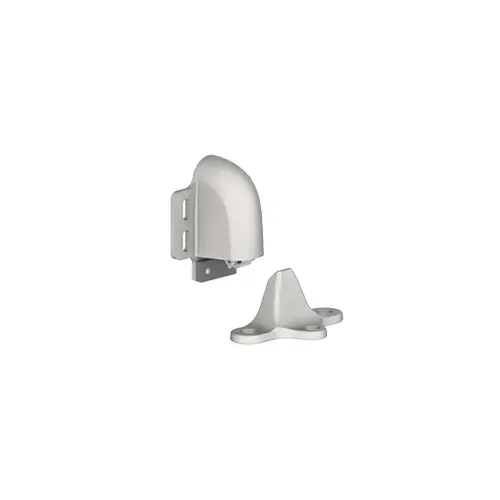

327F Automatic Floor Stop and Holder with 1-3/4" High Strike, Satin Chrome Finish

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Hager 029249 327F Automatic Floor Stop and Holder with 1-3/4" High Strike, Satin Chrome Finish

Item #: 029249 by Hager

UPC #: 041359292494

See reviewsSee reviews
See reviews summary
In Stock

$75.24

/each
SAVE UP TO 7.52
Buying in bulk

QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • For Use On Wood Or Metal Doors And Floors
  • Ideal Heavy Traffic Situations Requiring Frequent Hold Open
  • Firm Pull Releases Holding Mechanism
  • Holder Has Vertical Adjustment Once Mounted
  • Cast Brass

Finish

Satin Chrome

Series

Hager Trim and Auxiliary Series

Projection

1-15/16"

Material

Cast Brass

Strike Size

Floor strike 2"D x 44-3/32"L x 1-3/4"H (56 mm x 105 mm x 44 mm)

Dimension

3-1/16" x 3-1/2" Holder Base; 1-15/16" Projection; 2" x 4-3/32" Floor Strike

Hazardous Material

No

Holder Projection

1-15/16" (49 mm)

Fasteners

Four #12-24 x 1" TPHMS, Three #14 x 1-1/2" FPHWS & Anchors, Three 1/4 - 20 x 3/4" FPHMS w/ Lead Anchor, Four #12 x 1" TPHWS

Holder Base Width

3-1/16" (78 mm)

Max Door to Floor Clearance

9/16" to 1-1/16' (14 mm x 27 mm)

Holder Base Height

3-1/2" (89 mm)

FINISHES - TRIM

US26D - SATIN CHROMIUM

Manufacturer Warranty

Limited Lifetime Warranty and 1 Year Finish Warranty

Finish code

US26D

No of inners

1

Product Overview
Automatic Floor Stop and Holder
Notes:
  • Ideal for heavy traffic situations that require frequent hold open
  • For use on wood or metal doors. For use on wood or concrete floors
  • Firm pull releases holding mechanism
  • Holder has vertical adjustment once mounted on the door

Certifications:
Meets ANSI A156.16 for LO1301
Finishes:
US3, US10B, US26D
Notes:
  • Ideal for heavy traffic situations that require frequent hold open
  • For use on wood or metal doors. For use on wood or concrete floors
  • Firm pull releases holding mechanism
  • Holder has vertical adjustment once mounted on the door
