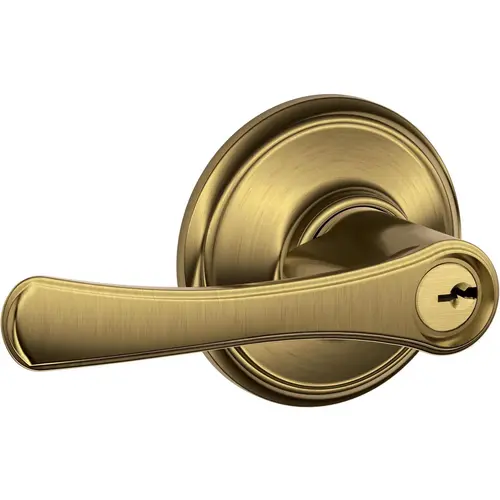

Schlage Residential F51A VLA 609 F51AVLA609 16-211 10-063 K4 Avila Entry - Antique Brass
Item #: F51A VLA 609 by Schlage Residential
Brand: Schlage Residential
UPC #: 043156465729
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Easy 3-Step Installation, Only a Screwdriver Needed
- Applications: Residential single- and multi-family doors
- Certifications: ANSI A156.2, 1996, Series 4000 Grade 2
- Certified Commercial Grade 2
- Graded Best in Residential Security, Durability, and Finish
- U.L. Listed: Locks for up to three-hour fire doors available
- Door thickness range: 1-3/8" to 1-3/4" (35mm-44mm) standard
- Entry (Keyed) Function - Locked by Key & Rotating Cylinder from Outside; Unlocked by Key on Outside or when opened from inside
- Backset: Universal latch standard, fits either 2-3/8" (60mm) or 2-3/4" (70mm) backsets. 5" (127mm) backset available
- ADA compliant: Yes
- Reversible Handing
- Metal Construction Adds Strength, Security and Durability
- Lifetime Mechanical & Finish Warranty
- Quality Finishes Coordinate with Plumbing and Lighting
Strike
Full Lip 2-1/4 Inch, Radius Corner
Design
Avila Lever
Backset
2-3/8 Inch or 2-3/4 Inch
Series
F Series
Finish
Antique Brass
Function
Keyed Entry
Color
Satin Brass Blackened Satin Relieved Clear Coated
Color Code
609/US5
Grade
ANSI/BHMA Grade 2
Keyway
SC1 5-Pin Pin & Tumbler
Cylinder Type
Conventional Cylinder
Finish Description
Antique Brass
Lever Style
VLA-Avila
Keyblank Grouping
SCHR-C-5-1
Rose/Escutcheon Trim
Round Rose
Product Type
Cylindrical Lock
Keying Charges
Residential-Conventional
Sub-Series
F51A-VLA
Lever Style Family
Straight Lever
Door Edge Bore
1 Inch
Manufacturer Parent
Allegion
Door Cross Bore
2.125 Inch
Strike Size
1-5/8" x 2-1/4"
Features
Highest Industry Ratings for Residential Security, Durability and Finish; Installs in Minutes; Reversible Levers
Product Projection
2.7188 Inch
Function Family
Entry/Entrance/Office
For Door Thickness
1-3/8" to 1-3/4"
Door Preparation
Cross Bore: 2-1/8"; Edge Bore: 1"
Faceplate Dimension
1" x 2-1/4"
Standards
ANSI/BHMA A156.2-2011; ANSI/BHMA A156.39-2015; UL Listed; ADA Compliant
Bolt Type
Deadlatching
Product Material
Zinc
Included Components
Keyed Entry Levers; Roses; Latch; Strike; Mounting Hardware
Finish Family
Antique Brass
ADA Compliant
YES
Strike Type
Radius Corner Full Lip
Latch Type
Deadlatch
Bolt Throw
1/2 Inch
Door Thickness
1-3/8" to 1-3/4"
Warranty
Lifetime Limited Mechanical/Finish
Application
Residential; Standard Doors
Collection
Avila
Package Height
3.25"
Package Length
7"
Package Width
6"
Item Weight
1.55 lbs
Dimension
4-9/32" Lever and 2-3/4" Projection with 2-3/4" Diameter Rose
Material
Zinc
Handing
Reversible
Manufacturer Warranty
Limited Lifetime Mechanical and Finish Warranty
Rose/Escutcheon Design
Georgian Rose
Door Range
1-3/8" to 1-3/4"
Hazardous Material
No
Strike Dimension
1-5/8" x 2-1/4"
Cross Bore Size
2-1/8" Bore
Finish code
609
Latch Faceplate Dimension
1" x 2-1/4"
Lever Knob Design
Avila Lever
No of inners
1
No Of Pins
5 Pin Cylinder
ANSI/BHMA Standards
F81
Keyed
Yes
Handle Type
Lever
Keying
None (Select for Less Cylinder Options)
Handle Design
Avila Lever
Electronic
No
Lever/Knob Design
Avila Lever
Door Handing
Non-Handed
Standard Strike
10-027: Full Lip Radius Strike, 2-1/4" x 1-5/8"
Substrate Type
Zinc and Steel
Door Thickness Range
1-3/8" To 1-3/4"
Lock Type
Cylindrical
Standard Latch
16-086: Dead Latch, Dual Option (Round, Drive-in)
Rose Design
Alden Rose
Projection
2-3/4"
Product Overview
The Schlage Avila Lever Keyed Entry Lock in Antique Brass is perfect for use on entry doors where keyed locking is needed. The Avila lever's unmistakable curve and subtle detailing make this a striking style hard to forget. The rich brown hues and golden undertones of Antique Brass lend a warm, inviting appeal to the lever. Plus, it's been designed and tested with strength and durability in mind.
