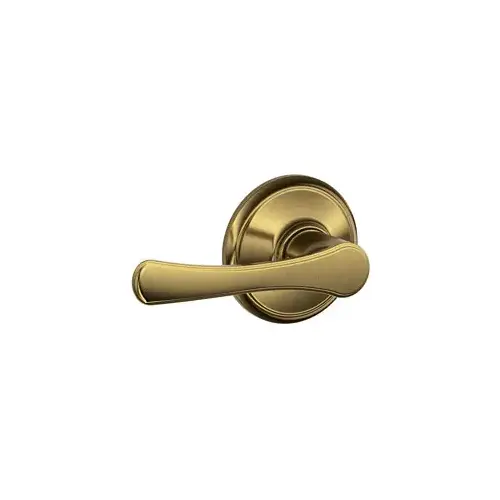

Schlage Residential F10 VLA 609 F10VLA609 16-080 10-027 Avila Passage - Antique Brass
Item #: F10 VLA 609 by Schlage Residential
UPC #: 043156309597
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Non-Locking - Ideal for Closets and Rooms Where Locking is Not Needed
- Reversible Handing
- Applications: Residential single- and multi-family doors
- Certifications: ANSI A156.2, 1996, Series 4000 Grade 2
- Easy 3-Step Installation, Only a Screwdriver Needed
- Lifetime Mechanical & Finish Warranty
- Quality Materials and Construction for Exceptional Security
- Quality Finishes Coordinate with Plumbing and Lighting
- U.L. Listed: Locks for up to three-hour fire doors available
- Door thickness range: 1-3/8" to 1-3/4" (35mm-44mm) standard
- Certified Commercial Grade 2
- Hall/ Closet (Passage) Function - - Both Knobs/Levers Always Unlocked
- Backset: Universal latch standard, fits either 2-3/8" (60mm) or 2-3/4" (70mm) backsets. 5" (127mm) backset available
- ADA compliant: Yes
Function
Passage/Hall/Closet
Finish
Antique Brass
Series
F Series
Backset
2-3/8 Inch or 2-3/4 Inch
Strike
Full Lip 2-1/4 Inch, Radius Corner
Design
Avila Lever
Color
Satin Brass Blackened Satin Relieved Clear Coated
Color Code
609/US5
Grade
ANSI/BHMA Grade 2
Finish Description
Antique Brass
Lever Style
VLA-Avila
Rose/Escutcheon Trim
Round Rose
Product Type
Cylindrical Lock
Handing
Reversible
Application
Residential Single and Multi-Family Doors
Warranty
Limited Lifetime Mechanical and Finish Warranty
Door Thickness
1-3/8" to 1-3/4"
ANSI Function
F75
Latch Type
Spring
Strike Number
10-027
Strike Type
Radius, Full Lip
ADA Compliant
YES
Finish Family
Antique Brass
Included Components
Passage levers, roses, latch, strike, mounting hardware
Door Cross Bore
2.125 Inch
Product Material
Zinc
Strike Name
Round Corner Full Lip
Standards
ANSI/BHMA A156.39-2015; UL Listed; ADA
Faceplate Dimension
1" x 2-1/4"
Door Preparation
Cross Bore 2-1/8"; Edge Bore 7/8"
Function Description
Latch retracted by knobs/levers at all times
For Door Thickness
1-3/8" to 1-3/4"
Function Family
Passage/Hall/Closet
Features
Non-Locking Ideal For Closets And Rooms Where Locking Is Not Needed; Easy 3-Step Installation, Only A Screwdriver Needed; Quality Materials And Construction For Exceptional Security; Quality Finishes Coordinate With Plumbing And Lighting
Bolt Throw
1/2 Inch
Strike Size
1-5/8 x 2-1/4 Inch
Manufacturer Parent
Allegion
Door Edge Bore
1 Inch
Lever Style Family
Straight Lever
Sub-Series
F10-VLA
Collection
Avila
Package Height
3.25"
Package Length
7"
Package Width
6"
Item Weight
2.07 lbs
Product Overview
The Schlage Avila Lever Hall and Closet Lock in Antique Brass is perfect for use on doors where locking is not needed. The Avila lever's unmistakable curve and subtle detailing make this a striking style hard to forget. The rich brown hues and golden undertones of Antique Brass lend a warm, inviting appeal to the lever. Plus, it's been designed and tested with strength and durability in mind.
