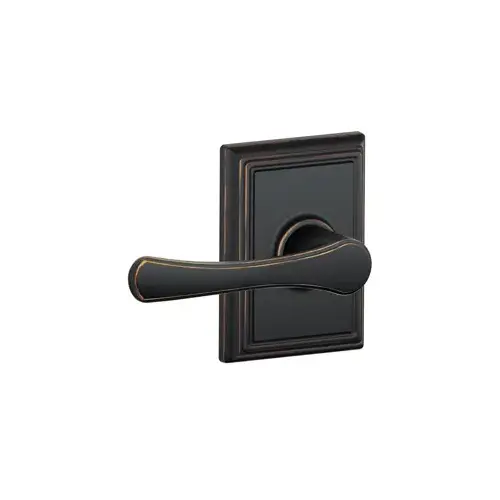

Schlage Residential F10 VLA 716 ADD F10VLA716ADD 16-080 10-027 Avila / Addison Passage - Aged Bronze
Item #: F10 VLA 716 ADD by Schlage Residential
UPC #: 043156178858
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Non-Locking - Ideal for Closets and Rooms Where Locking is Not Needed
- Reversible Handing
- Applications: Residential single- and multi-family doors
- Certifications: ANSI A156.2, 1996, Series 4000 Grade 2
- Easy 3-Step Installation, Only a Screwdriver Needed
- Lifetime Mechanical & Finish Warranty
- Quality Materials and Construction for Exceptional Security
- Quality Finishes Coordinate with Plumbing and Lighting
- U.L. Listed: Locks for up to three-hour fire doors available
- Door thickness range: 1-3/8" to 1-3/4" (35mm-44mm) standard
- Certified Commercial Grade 2
- Hall/ Closet (Passage) Function - - Both Knobs/Levers Always Unlocked
- Backset: Universal latch standard, fits either 2-3/8" (60mm) or 2-3/4" (70mm) backsets. 5" (127mm) backset available
- ADA compliant: Yes
Function
Passage/Hall/Closet
Finish
Aged Bronze
Series
F Series
Backset
2-3/8 Inch or 2-3/4 Inch
Strike
Full Lip 2-1/4 Inch, Radius Corner
Design
Avila Lever With Addison Rose
Color
Antique Bronze
Color Code
643E/US11/716
Grade
ANSI/BHMA Grade 2
Finish Description
Aged Bronze
Lever Style
VLA-Avila
Rose/Escutcheon Trim
ADD-Addison
Product Type
Cylindrical Lock
Handing
Reversible
Projection
2.2500
Door Thickness
1-3/8" to 1-3/4"
Bore Size
2.1250
Product Height
3-1/4 Inch
Product Length
7 Inch
Included Components
Passage levers, roses, latch, strike, mounting hardware
Door Cross Bore
2.125 Inch
Product Material
Zinc
Box Length
7.0000
Box Width
6.0000
Box Height
3.2500
For Door Thickness
1-3/8" to 1-3/4"
Strike Size
1-5/8 x 2-1/4 Inch
Strike Number
10-027
Manufacturer Parent
Allegion
Faceplate Dimension
1" x 2-1/4"
Door Edge Bore
1 Inch
Latch Type
Spring
Function Description
Latch retracted by knobs/levers at all times
ANSI Function
F75
Sub-Series
F10-VLA-ADD
Lever Style Family
Straight Lever
Door Preparation
Cross Bore 2-1/8"; Edge Bore 7/8"
ADA Compliant
YES
Application
Residential Single and Multi-Family Doors
Box Dimensions (L x W x H)
3.25x6x7"
Function Family
Passage/Hall/Closet
Standards
ANSI/BHMA A156.39-2015; UL Listed; ADA
Features
Non-Locking Ideal For Closets And Rooms Where Locking Is Not Needed; Easy 3-Step Installation, Only A Screwdriver Needed; Quality Materials And Construction For Exceptional Security; Quality Finishes Coordinate With Plumbing And Lighting
Strike Type
Radius, Full Lip
Bolt Throw
1/2 Inch
Warranty
Limited Lifetime Mechanical and Finish Warranty
Strike Name
Round Corner Full Lip
Finish Family
Antique Bronze
Collection
Avila
Package Height
4"
Package Length
7"
Package Width
6"
Item Weight
2.5 lbs
Dimension
4-9/32" Lever and 2-3/4" Projection with 2-3/4" x 4" Rose
Material
Zinc
Manufacturer Warranty
Limited Lifetime Mechanical and Finish Warranty
Rose/Escutcheon Design
Addison Rose
Door Range
1-3/8" to 1-3/4"
Hazardous Material
No
Strike Dimension
2-1/4" x 1-5/8" x 1-1/8" Lip
Cross Bore Size
2-1/8" Bore
Finish code
716
Latch Faceplate Dimension
1" x 2-1/4"
Lever Knob Design
Avila Lever
No of inners
1
Product Overview
The Schlage Avila Lever with Addison Trim Hall and Closet Lock in Aged Bronze is perfect for use on doors where locking is not needed. The Avila lever's unmistakable curve and subtle detailing make this a striking style hard to forget, while the Addison trim's distinguished look incorporates subtle details without losing its classic simplicity. Our Aged Bronze finish is inspired by traditional design, featuring warm, copper tones that break through its darker, aged exterior. Plus, it's been designed and tested with strength and durability in mind.
