Technology: Microwave Doppler Radar. Detection Mode: Motion (bidirectional). Detection Range: 4 – 24" (adjustable). Output: Relay with switch-over contact (voltage-free). Output Hold Time: 0.5 – 30 s. Supply Frequency: 50 – 60 Hz. Supply Voltage: Power Consumption: < 1.5 W. Wire Gauge: 26 – 22 AWG. Weight: 0.34 lbs. Material: Stainless Steel. Temperature Range: - 4 – 131 °F. IP Rating: IP55 (Apply silicone to achieve IP65). Dimensions: Certification: 10MS41-S: Stainless steel single gang - text + hand logo. 10MS41-SA: Stainless steel single gang - text + accessibility logo. 10MS41-D: Stainless steel double gang - text + hand logo. 10MS41-DA: Stainless steel double gang - text + accessibility logo. 10MS41-R: Stainless steel round plate - text + hand logo. 10MS41-RA: Stainless steel round plate - text + accessibility logo. 10TD900TR: 900 MHz retrofit transmitter. 10MS41-SP: Stainless steel single gang - plain. 10MS41-DP: Stainless steel double gang - plain. 10MS41-RP: Stainless steel round plate - plain. » N/A - Stainless Steel
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

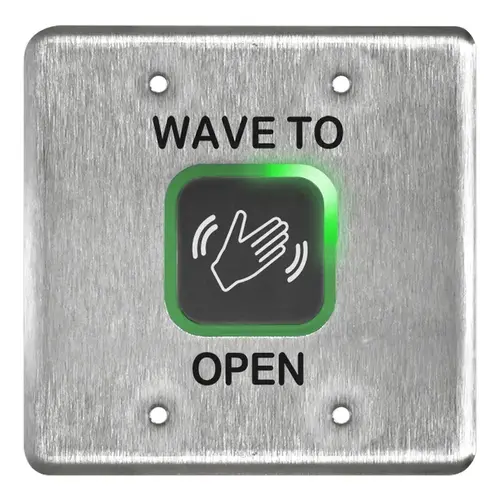

BEA 10MS41-D Magic Switch, Touchless, Stainless Steel Double Gang, Wave to Open Text & Logo - 4 1/2" (H) 4 1/2" (W) 9/50" (T)
Item #: 10MS41-D by BEA
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Color
Satin Stainless Steel
Color Code
630/US32D
Alternate Part Number-1
173665
Kit Contents
Plates, mounting boxes, and optional wireless device
Function
Actuator Button
Output Current
1 A (Resistive)
Temperature Range
-4 - 131°F (-20 - 55°C)
Product Height
4-1/2 Inch
Product Width
4-1/2 Inch
ADA Compliant
YES
Time Delay
Adjustable 0.5 - 30 S
Product Material
Stainless steel
IP Rating
IP54
Product Dimensions
4-1/2" H x 4-1/2" W x 9/50" T
Standards
UL Recognized
Function Family
Part/Component
Features
Robust Design; Vandal Resistant; Enhances Accessibility; Highly Compatible and Customizable
Product Type
Access Control Part/Accessory
Series
10MS Series
Output Voltage
60 VDC/125 VAC
Detection Mode
Motion (Bidirectional)
Supply Voltage
12-24 VAC, 12-24 VDC
Manufacturer Parent
Halma
Faceplate Graphic
Hand Logo and "Wave to Open" Text
healthy_solution
Touchless
Sub-Series
10MS41-D
Product Overview
BEA MAGIC SWITCH Family Touchless Actuator (MS41)
BEA MAGIC SWITCH Family: provides a highly accessible and germ-free door activation without physical contact. Reduce touchpoints in fast-paced environments that depend on sanitation like healthcare, retail, industrial and commercial settings.
Using microwave technology, BEA’s MS41 produces a detection field with a reliable and consistent transmission in interior and exterior applications. Capable of detecting a moving hand, cart or wheelchair. Plus, an adjustable hold time offers flexibility to meet ANSI standards.
The MS41 features rounded corners and a customizable illuminated ring with audible signaling. The durable design suits sterile, wash-down applications such as surgical, wash-down, clean room and pharmaceutical environments.
SPECIFICATIONS:
- Radiated Frequency: 24.125 GHz.
- Radiated Power Density: < 5 mW/cm².
- Max. Contact Voltage: 60 VDC / 125 VAC.
- Max. Contact Current: 1A (resistive).
- Max. Switching Power: 30 W (DC) / 60 VA (AC).
- 12 – 24 VAC ± 10%.
- 12 – 24 VDC + 30% / - 10%.
- Single Gang: 4-1/2" (H) x 2-3/4" (W) x 9/50" (T).
- Double Gang: 4-1/2" (H) x 4-1/2" (W) x 9/50" (T).
- Round: 6" (D) x 9/50" (T).
- Cube: 2-1/16" (H) x 1-13/16" (W) x 1-1/8" (T).
- EMC: 2004 / 108 / EC.
- FCC: G9B-210161.
- IC: 4680A-210161.
Product Series:
FINISHES:
