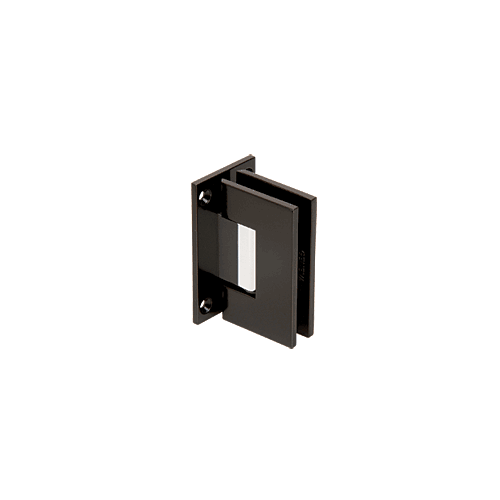

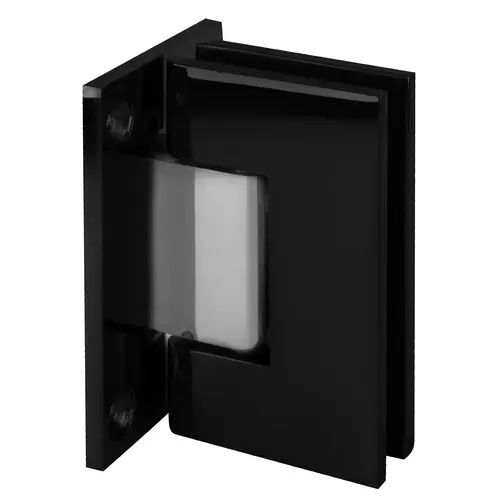

CRL JRG037BL Black with Chrome Center Block Junior Geneva 037 Series Wall Mount Full Back Plate Hinge
Item #: JRG037BL by CR Laurence
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Wall Mount Full Back Plate Standard Model (Factory Set for Standard Closing Position)
- Self-Centering with Reversible 5 Degree Pivot Pin
- Use Monolithic Tempered Glass
Maximum Door Width - 3 Hinges (Inches)
Maximum Door Weight - 3 Hinges (Pounds)
Maximum Door Weight - 2 Hinges (Pounds)
5 Degree Pre-Set
1/4 To 5/16
Maximum Door Width - 2 Hinges (Inches)
Max Dr Weight - 3 Hinges (Lbs)
Max Dr Weight - 2 Hinges (Lbs)
Max Dr Width - 3 Hinges (Inch)
Max Dr Width - 2 Hinges (Inch)
The same elegant European design that has made our Geneva Series so popular is available in a smaller version, the Junior Geneva, to offer flexibility of application. Used to accommodate 1/4" (6 mm) to 5/16" (8 mm) thick glass, the Junior Geneva is made of solid brass. There are three Wall Mount styles along with 90 degree, 135 degree, and 180 degree Glass-to-Glass styles. The Junior Geneva is self-centering and available in up to 12 stock finishes. They contain a Reversible Pivot Pin for optional 5 degree tighter door closure.
STANDARD REVERSIBLE PIVOT PIN: Each Junior Geneva Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90 degree. The opposite side of the Pin is marked 85 degree, which will allow the door to close 5 degree further into the shower. The Pin can be rotated (not flipped upside down) to activate the other side.
CUSTOM PIVOT PIN Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90 degree. If the standard 5 degree Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degree).
Using two hinges with 1/4" to 5/16" glass (6 to 8 mm) the hinge will hold up to 62 lbs. (28 kg) with a maximum door width of 28" (711 mm).
Using three hinges with 1/4" to 5/16" glass (6 to 8 mm) the hinge will hold up to 92 lbs. (42 kg) with a maximum door width of 32" (813 mm).
Glass Thickness: 1/4" (6 mm) to 5/16" (8 mm) Tempered Safety Glass
Special Features: Most models offer a choice of Standard Model, factory set at standard closing position (0 degree), or 5 degree Pre-Set Model for tighter closure into shower interior. All models contain a Reversible 5 degree Pivot Pin. When activated, it allows 5 degree tighter door closure.
Construction: Solid Brass
Hinge Swings: 90 degree In and 90 degree Out
Closing Type: Self-Centering when within 15 degree of closed position.
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
