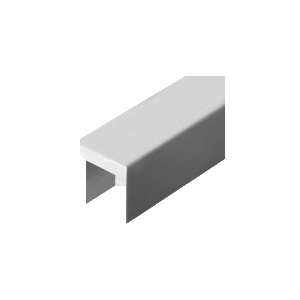

CRL Blumcraft  Satin Anodized 324 Series 1-3/8" x 1-3/8" Extruded Aluminum Cap Rail
Qty
+
$451.19   /stock length

CRL Blumcraft 324SA Satin Anodized 324 Series 1-3/8" x 1-3/8" Extruded Aluminum Cap Rail

  • Extruded Heavy-Duty Solid Aluminum Construction
  • For 1/2" (12 mm) Glass
  • Ready-to-Install
  • Sold in 120" (3.05 m) Stock Lengths or Custom Fabricated to Size
  • Stainless Steel Adapter Strips Sold Separately
  • Two Architectural Finishes, Plus Mill Aluminum Available from Stock
See Full Product Description
SALE

$451.19 /stock length

Qty

In stock
Quick Shipping

Usually ships in 1 business day*

SALE
+
In stock Quick Shipping

Usually ships in 1 business day*

Have a Question?

Chat with our Expert


Description

  • Extruded Heavy-Duty Solid Aluminum Construction
  • For 1/2" (12 mm) Glass
  • Ready-to-Install
  • Sold in 120" (3.05 m) Stock Lengths or Custom Fabricated to Size
  • Stainless Steel Adapter Strips Sold Separately
  • Two Architectural Finishes, Plus Mill Aluminum Available from Stock

  • Product Description
  • Technical Details 7
  • Product Reviews 1
  • Product Q&A 1
  • Large Order Quote
  • Shipping / Return Policy

Product Description

Grade

6063-T5

Width

3/4" (19 mm)

"W" Width

3/4" (19 mm)

Type

Blumcraft 324 and 339 Series

Length

120" (3.05 m)

Use Adapter Strip No.

ST302

Use Splice Pin No.

22A58

Depth

5/16" (7.9 mm)

Brand

Blumcraft

"D" Depth

5/16" (7.9 mm)

Minimum Order

1 Stock Length

Finish

Satin Anodized

  • Extruded Heavy-Duty Solid Aluminum Construction
  • For 1/2" (12 mm) Glass
  • Ready-to-Install
  • Sold in 120" (3.05 m) Stock Lengths or Custom Fabricated to Size
  • Stainless Steel Adapter Strips Sold Separately
  • Two Architectural Finishes, Plus Mill Aluminum Available from Stock
CRL Blumcraft®'s Top Quality Extruded Cap Rails are produced from 6063-T5 aluminum and offered in two architectural finishes, plus mill aluminum. Cap Rails are sold in stock lengths or can be custom fabricated to size. The use of stainless steel Adapter Strips, Very High Bond Cladding Tape, and Splice Pins are required during the installation process.
When using CRL Blumcraft®'s 324 and 339 Series Cap Rails, it is important to install the stainless steel Adapter Strips onto the glass edge with Very High Bond Tape before installing your Cap Rail.
NOTE: Each Cap Rail comes complete with pre-drilled holes 24" (610 mm) on center and set screws along one side of the Cap Rail for proper attachment to the Adapter Strips.
