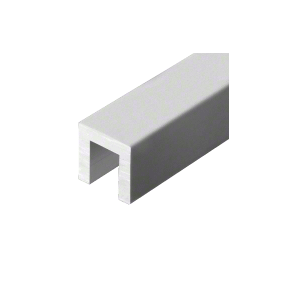

CRL Blumcraft 3243SA Satin Anodized 3243 Series 1-1/2" x 1-1/2" Extruded Aluminum Cap Rail 120" Stock Length
Item #: 3243SA by Blumcraft
In Stock $945.19 /stock length
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Intended for Use on 3/4" (19 mm) Tempered Glass
- Ready-to-Install
- Extruded Heavy-Duty Solid Aluminum Construction
- Two Architectural Finishes, Plus Mill Aluminum Available From Stock
- Stainless Steel Adapter Strips Sold Separately
- Sold in 120" (3.05 m) Stock Lengths or Custom Fabricated to Size
Grade
6063-T5
"W" Width
3/4" (19 mm)
Type
Blumcraft 324 and 339 Series
Use Adapter Strip No.
ST302
Use Splice Pin No.
22A58
Depth
5/16" (7.9 mm)
Brand
Blumcraft
Width
1-1/2
Height
1-1/2
Finish
Satin Anodized
Material
6063-T5 Aluminum
Length
120
Glazing Thickness
3/4, 13/16
Finish/Color
Satin Anodized
Glass Pocket Width (Inches)
1
Top of Rail to Top of Glass Pocket
3/8
Glazing Insert
ST302
CRL Blumcraft®'s Top Quality Extruded Cap Rails are produced from 6063-T5 aluminum and offered in two architectural finishes, plus mill aluminum. Cap Rails are sold in stock lengths or can be custom fabricated to size. The use of stainless steel Adapter Strips, Very High Bond Cladding Tape, and Splice Pins are required during the installation process.
When using CRL Blumcraft®'s 3243 Series Cap Rails, it is important to install the stainless steel Adapter Strips onto the glass edge with Very High Bond Tape before installing your Cap Rail.
NOTE: Each Cap Rail comes complete with pre-drilled holes 24" (610 mm) on center and set screws along one side of the Cap Rail for proper attachment to the Adapter Strips.
